Clearaudio Nano Phono V2 Phono Preamplifier
Price range: 450,00 € through 490,00 €
The Nano Phono V2 phonostage isn’t ruffled by anything. External interferences are no longer an issue with this fine piece of engineering. Its shielded casework and clever circuit design work in harmony to reject electromagnetic noise and radio-frequency interference, ensuring that the delicate signals from your turntable are reproduced with unflappable accuracy and precision.
Overview
Its meticulously selected SMD components are assembled by hand in Erlangen and tested several times. The reward of these efforts is a signal to noise ratio of up to 84 decibels. The input impedance is set using plug-in links, so there is no loss of quality when using different moving magnet and moving coil cartridges.
The Nano Phono Headphone V2 additionally contains a powerful headphone amplifier within the solid aluminium housing for private listening at the highest fidelity.

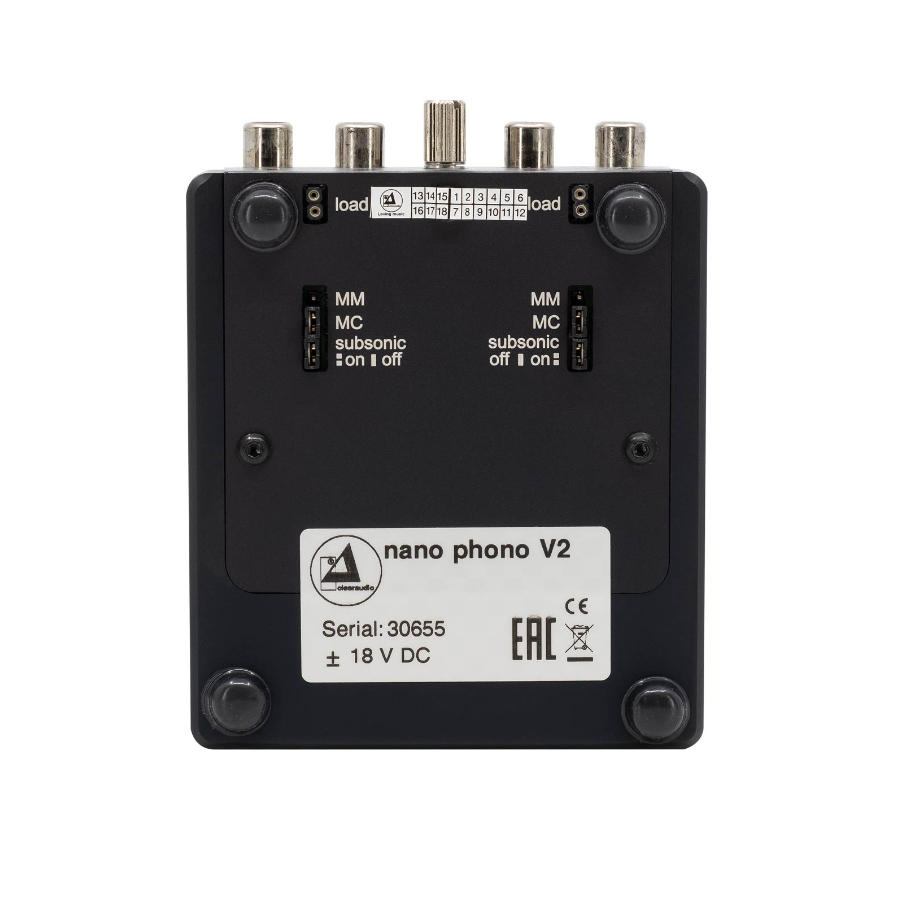

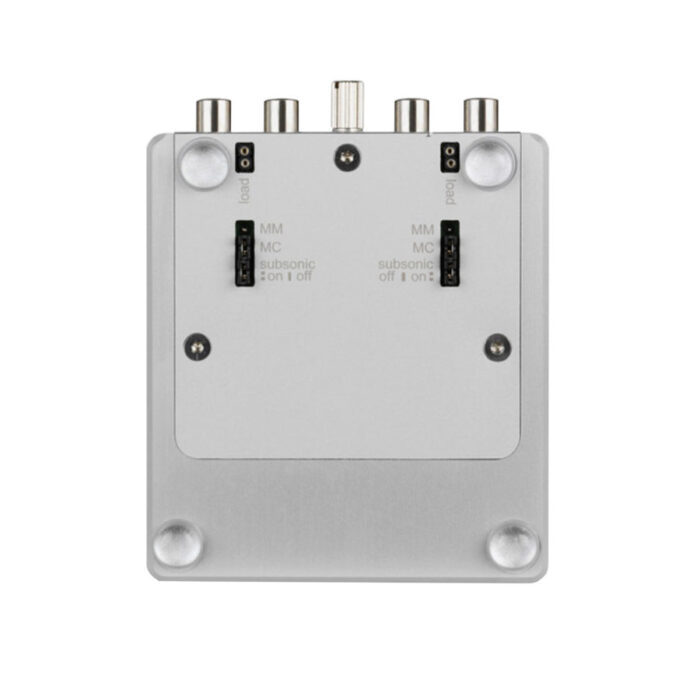

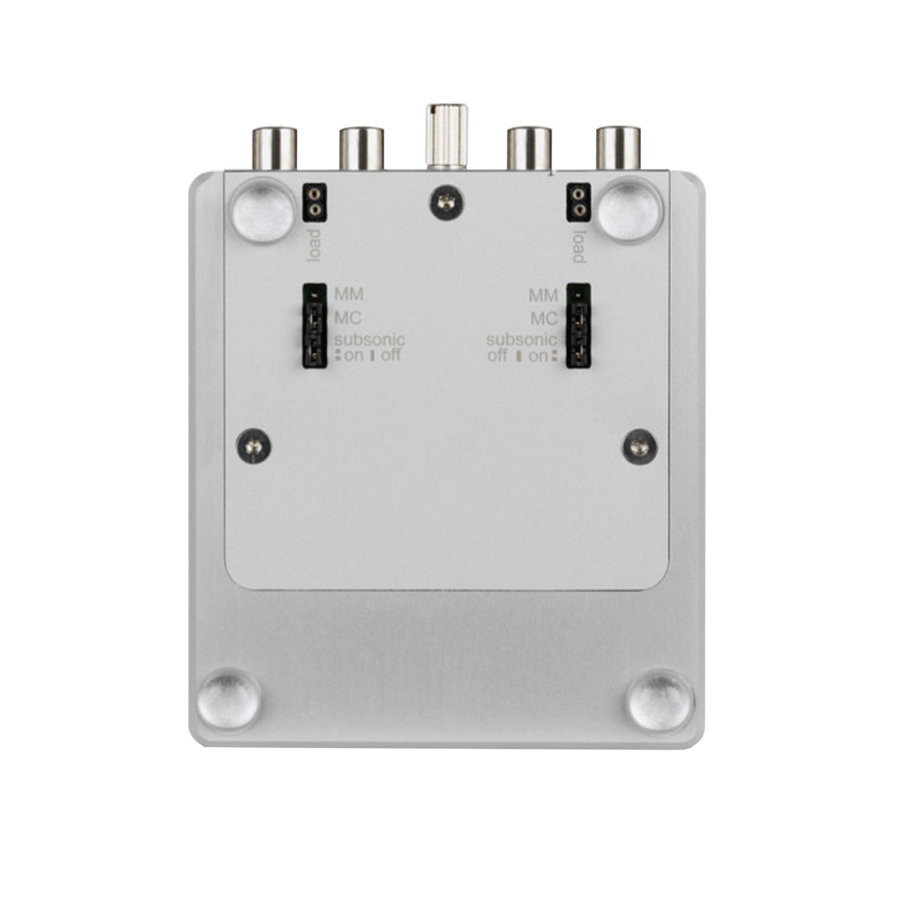

| Mode: | MM / MC switchable by jumpers (at bottom) Subsonic filter switchable by jumpers (at bottom) |
| Amplification: | 34dB (MM mode) 54dB (MC mode) |
| Input Load: | 47 kΩ/ 220pF / MM mode User MC mode |
| RIAA Accuracy: | ± 0.4dB @ 20Hz - 50kHz |
| THD: | < 0.04% |
| Signal to Noise Ratio: | 81dB (A) (MM mode) 70dB (A) (MC mode) |
| Headroom: | 18dB / MC |
| Max. Output Voltage: | 10V eff (1kHz) |
| Channel Seperation: | > 80dB @ 1kHz |
| Output Impedance: | 75Ω |
| Inputs: | Unbalanced (RCA) |
| Outputs: | Unbalanced (RCA) |
| Power Consumption: | Max. consumption: 2.3 Watt In operation: 2.3 Watt Standby mode: < 0.3 Watt Off mode: 0.0 Watt |
| Power Supply: | ±18V DC / 300mA (external power supply) |
| Weight: | Approx 500g (Preamp and power supply) |
| Dimensions: | Approx. 85 × 106 × 25mm |
