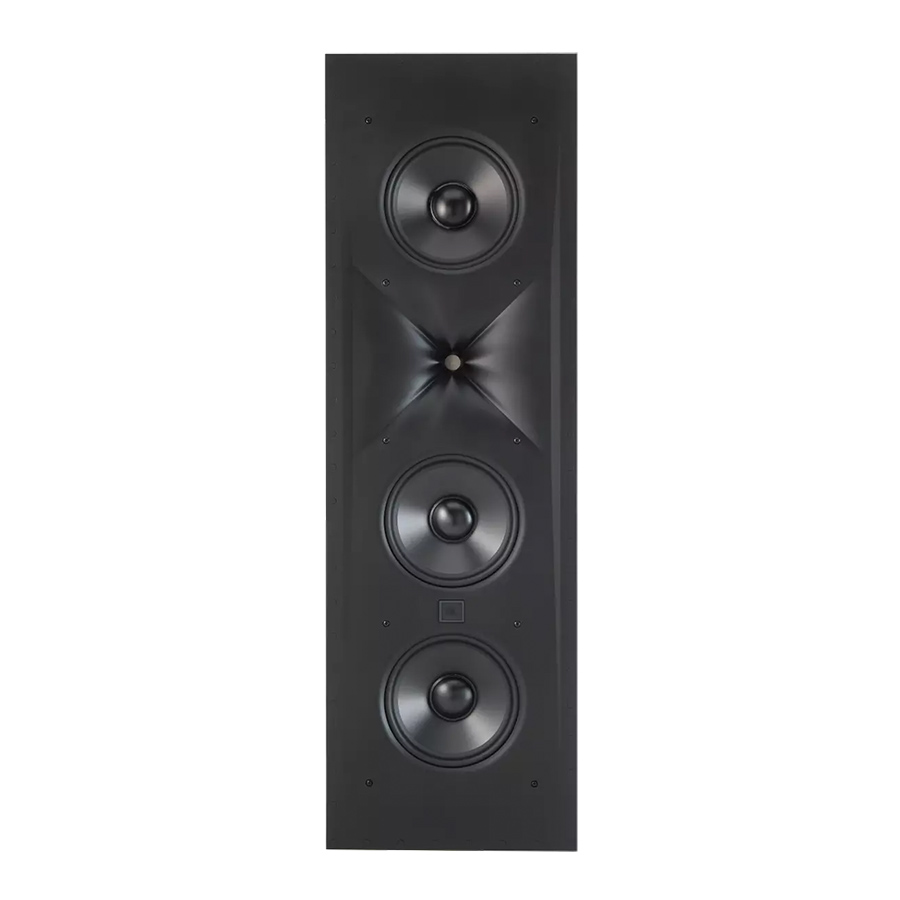

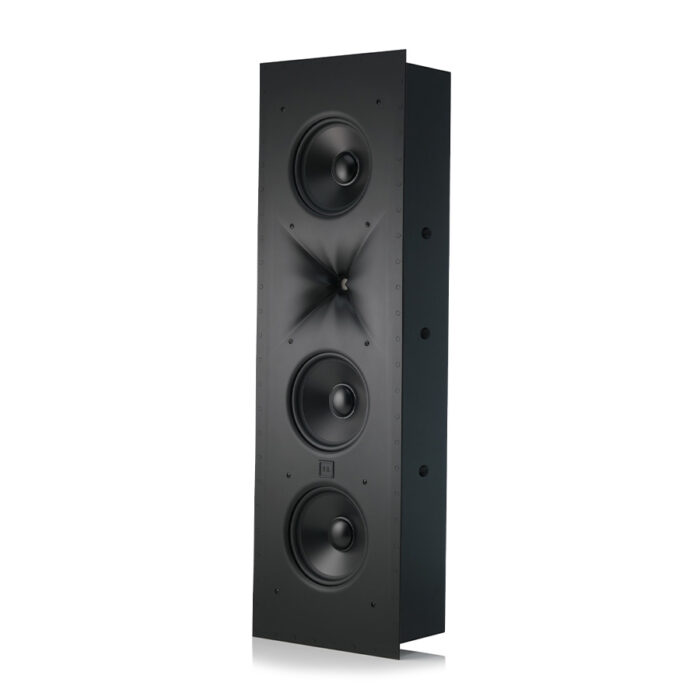

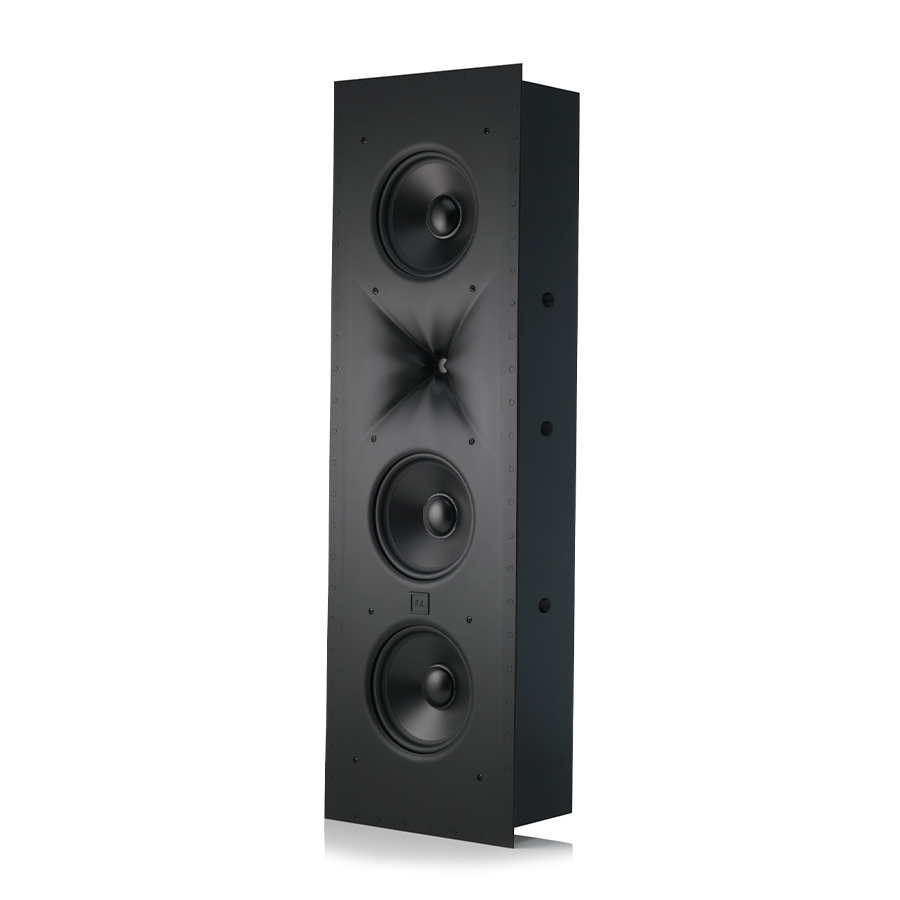

JBL Synthesis SCL-2 In-Wall Speaker
7799,00 €
The SCL-2 is a custom in-wall loudspeaker designed primarily for use as an LCR or surround in larger systems. It features JBL’s patented D2415K dual 1.5-inch (38mm) compression driver mated to a large format High-Definition Imaging (HDI) horn. Triple 8-inch (200mm) Advanced Aluminum Matrix cone cast-frame woofers operate in a 2.5-way network configuration allowing for installation vertically or horizontally without lobbing or other acoustical issues found in traditional designs.
Overview
Part of the JBL Synthesis Custom Loudspeakers range, the SCL-2 offers the highest level of acoustic performance available from a flush-mount loudspeaker. The SCL-2 is designed with a 2.5-way, triple 8-inch (200mm) driver configuration for low-frequency extension with high output capability and powerful dynamics. A D2415K dual voice coil, dual 1.5-inch (38mm) annular ring diaphragm Teonex® compression driver with advanced HDI geometry horn works in conjunction with three powerful cast-frame, 8-inch (200mm) Advanced Aluminum Matrix cone woofers with low distortion motor structures.
The loudspeaker’s 5.8-inch (147mm)-deep enclosure fits standard wall construction applications and features a Sonoglass™ precision-molded baffle assembly with integrated HDI waveguide/horn, and a zero-bezel, magnetically-attached grille. This enclosure can be oriented with the horn closer to the top or bottom, or on its side for center channel or reduced height applications. SCL-2 systems can be mixed and matched with other SCL speakers or any JBL Synthesis loudspeakers.

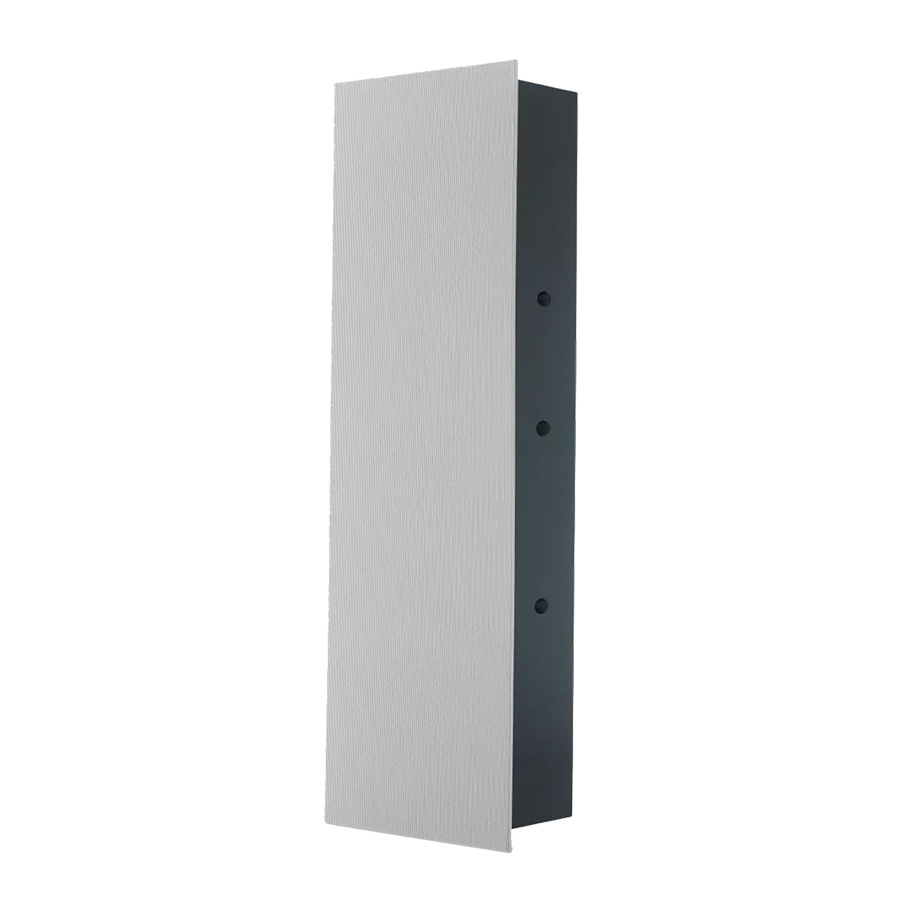

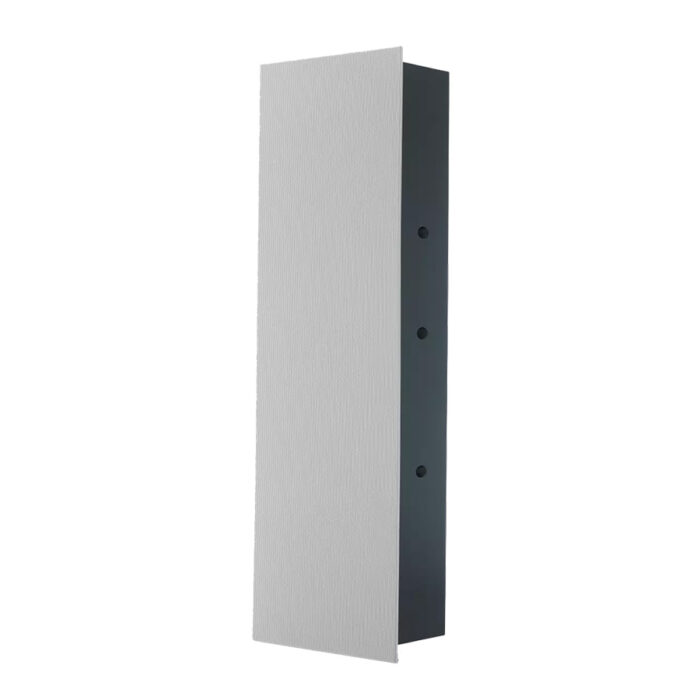

Designed to provide ultimate performance and the highest levels of dynamics from any in-wall loudspeaker, the SCL-2 can discretely integrate into any environment and décor. They can also be installed in a traditional application behind acoustic fabric or woven/perforated video screens without installing the grilles. They feature a discrete matte black baffle, HDI waveguide, and transducers, with a paintable white grille. The SCL-2 is the perfect solution for in-wall LCR or surround channel applications as part of a JBL Synthesis home theater.
| Type: | 2-Way In-wall loudspeaker |
| Low Frequency Drivers: | Dual 12-inch (300mm) Black Carbon Cellulose Composite Cone (C4) cast-frame woofers |
| High Frequency Driver: | 3" (75mm) dual annular Teonex ring-diaphragm compression driver with dual neodymium motor structures mated to Sonoglass HDI horn |
| Recommended Amplifier Power (Full bandwidth): | 500 WRMS |
| Recommended Amplifier Power (80 Hz HPF): | 500 WRMS |
| Impedance: | 4 Ohm |
| Loudspeaker Sensitivity: | 94 dB/1W/1m |
| Frequency Response: | 40 Hz - 24 kHz (-6 dB), 3rd order LF roll-off |
| Crossover Frequency: | 775 Hz |
| Coverage area, -6 dB @ 10 kHz: | Approximately 120 degrees horizontal x 100 degrees vertical |
| Coverage area, -6 dB @ 20 kHz: | Approximately 90 degrees horizontal x 70 degrees vertical |
| Enclosure Type: | Complementary Bass Alignment System (CBAS™) |
| HF Level Controls: | 3 Position - No grille, With grille, or With screen |
| Grille Dimensions: | 47.98" H x 19" W x 0.787" D (1218.7mm x 482.6mm x 20mm) |
| Product Dimensions: | 47.98" H x 19" W x 14.49" D (1218.7mm x 482.6mm x 368.1mm) |

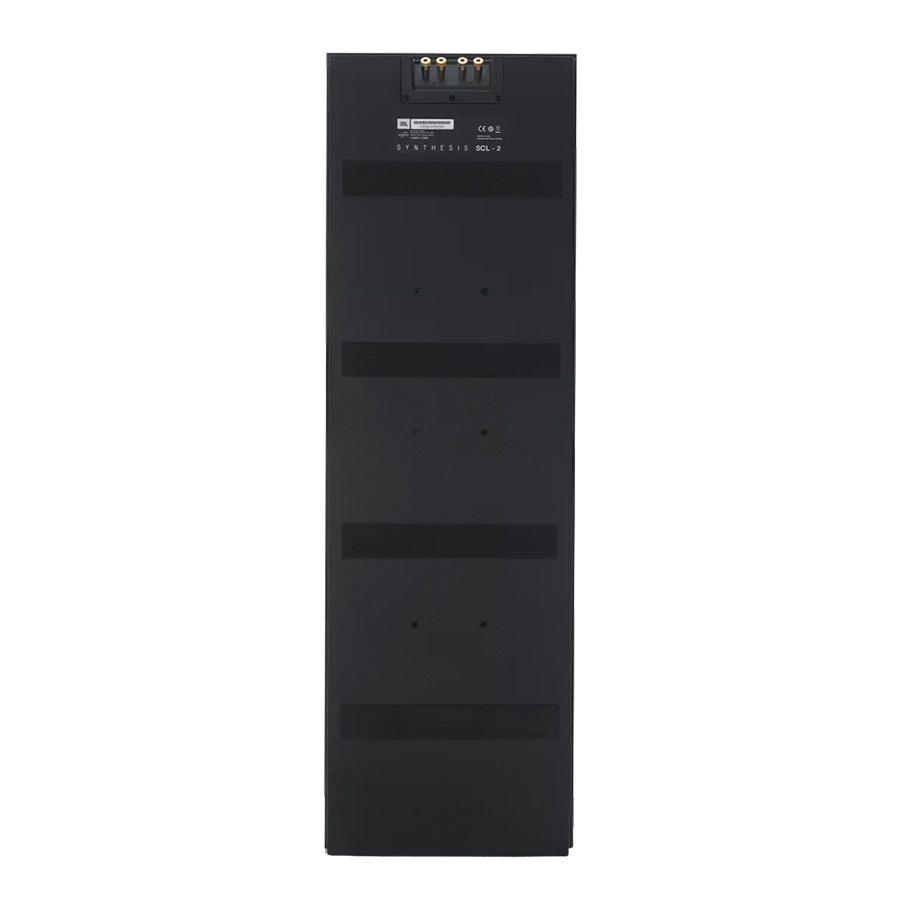

| Input Type: | Dual sets of gold-plated binding posts |
| Product Weight: | 177.5 lb. (80.5kg) |
| Shipping Weight: | 306.5 lb. (139 kg) |
| Shipping Units of Measure: | Each |
