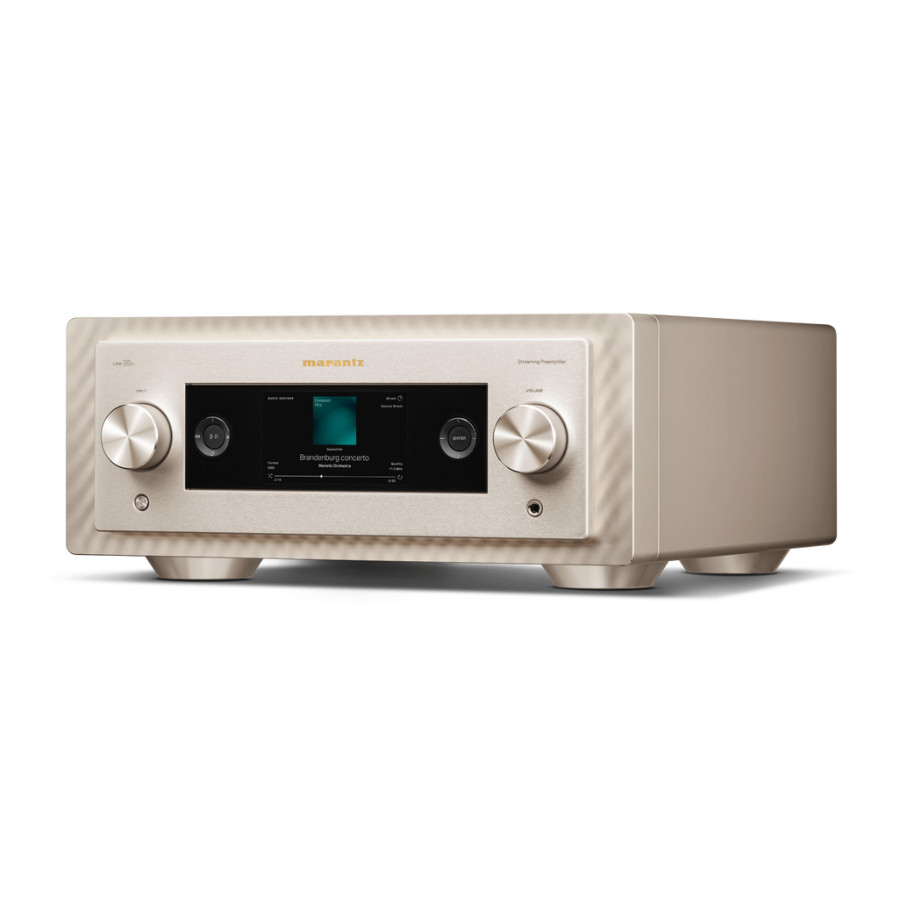

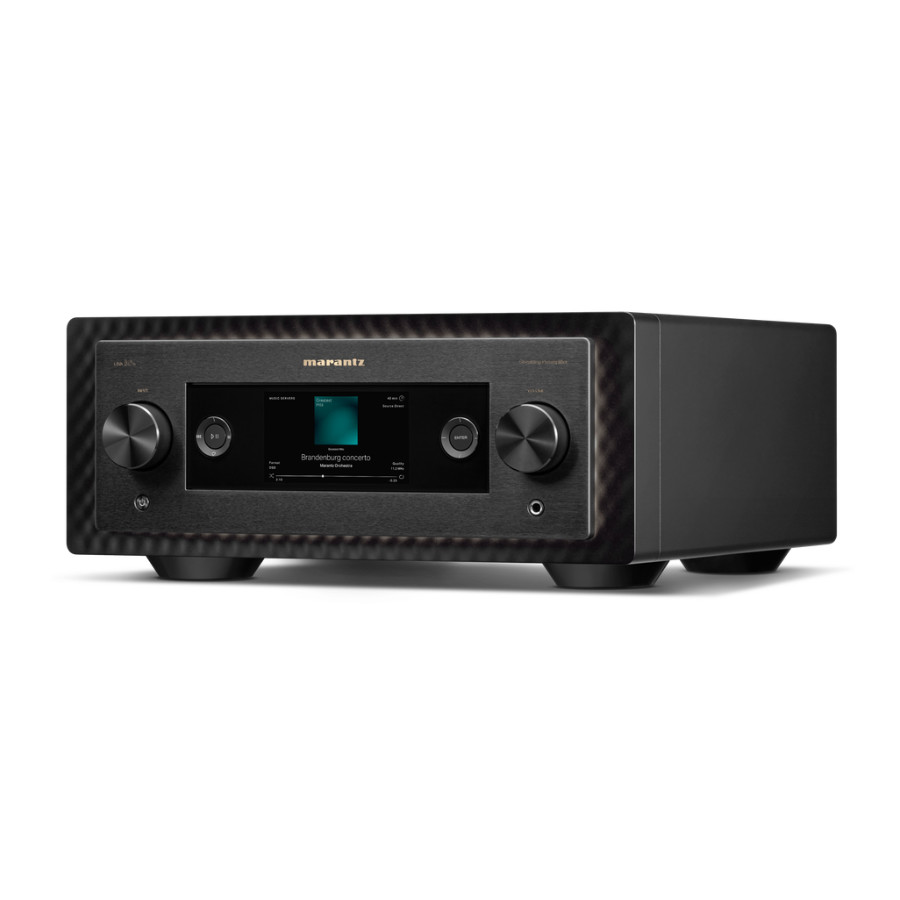

Marantz LINK 10 Network Audio Player
12500,00 €
LINK 10 is a reference-class network audio player engineered using the same technology and artisanship that establish MODEL 10 and SACD 10 as class leaders.
Overview
From the triple-layer aluminum chassis with copper plating to entirely original multi-layer PCBs, isolated sub-enclosures and HDAM modules, LINK 10n is the product of decades of expertise in audio engineering. It sets a new benchmark with meticulous construction, state-of-the art technologies, and elegant design.
As the flagship digital player in the Marantz portfolio, LINK 10n features the best measured performance of any digital product we’ve ever produced. Through extensive and careful listening, the Sound Master has selected numerous premium parts to be included in key circuits that elevate audible performance to a new standard of excellence.

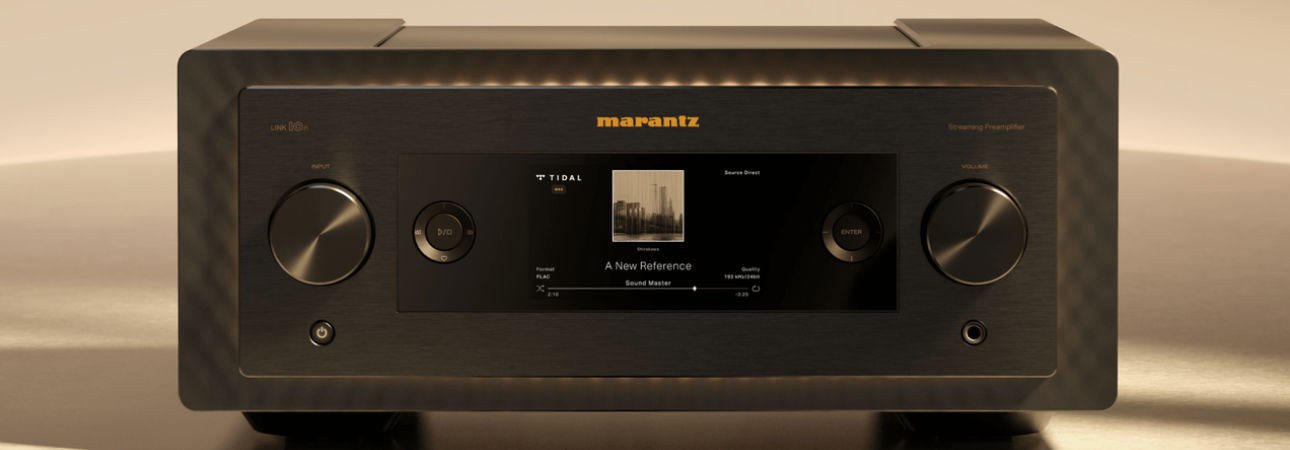

LINK 10n comes with a large high-resolution full-color display for a beautiful user interface and intuitive operation. Familiar arrow buttons make navigation effortless. Scroll to select your desired input and see source, track info, and play mode displayed on the screen, or enjoy easy HEOS onboarding and access to the app via a QR code.

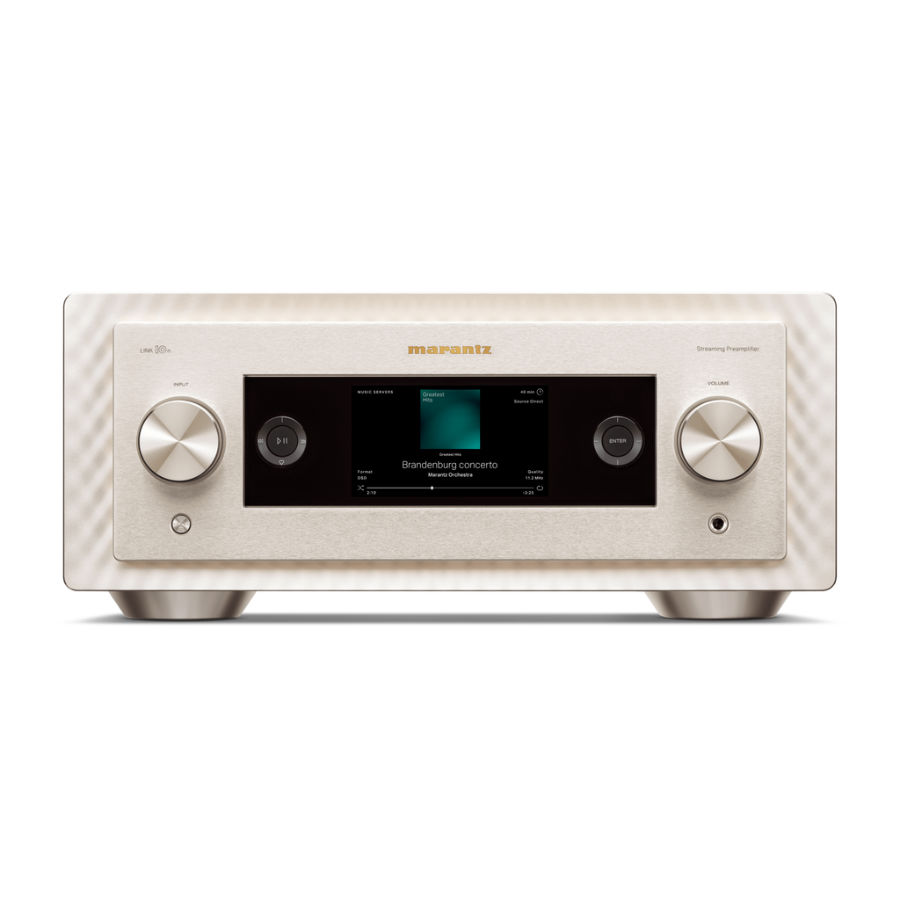

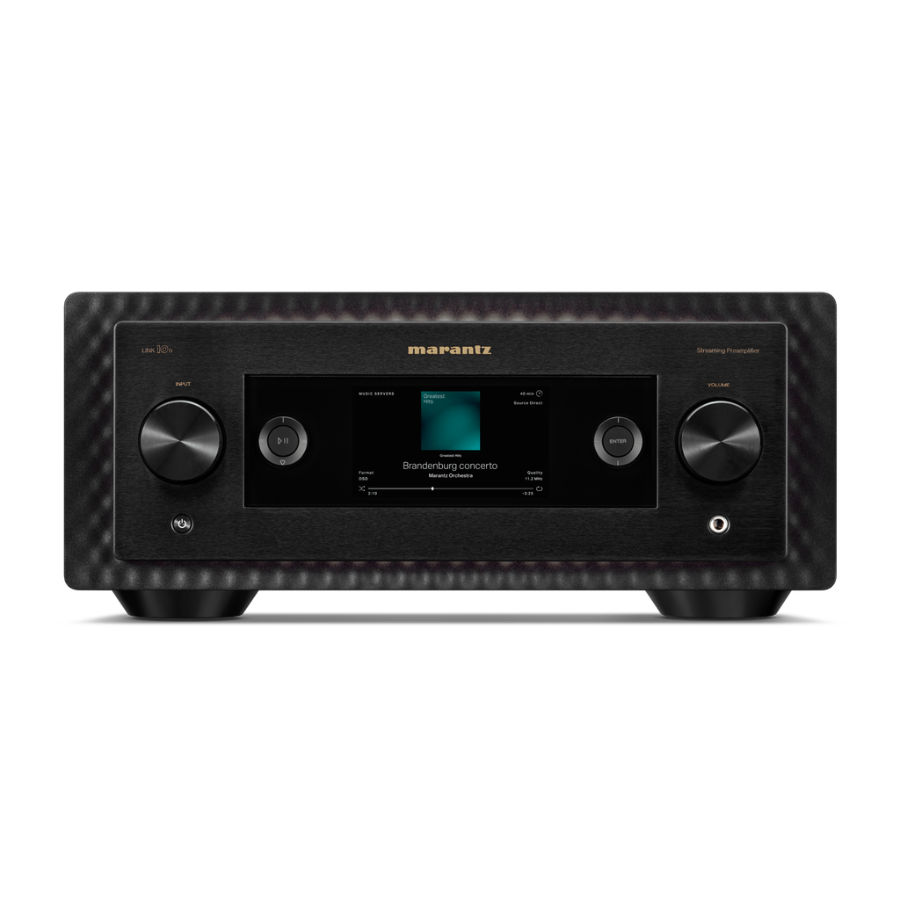

Machined and brushed aluminum control surface, sculpted back shell, spun knobs, and high-resolution full color display are each striking features of 10 Series components. The design is both distinctively Marantz, drawing inspiration from classic models, and progressively modern.
LINK 10n can act as a complete preamplifier front-end for your system, with all the functions of a modern high-end stereo system. Complete with single ended and balanced analog inputs, digital inputs, and a Marantz Premium Phono EQ supporting both MM and MC cartridges, it is also a fully featured front end for even the highest performance stereo systems.
| Audio Frequency Response: | PCM 2Hz–50kHz (-3dB) |
| Harmonic Distortion: | PCM 0.0004% |
| S/N: | PCM 0.0004% |
| Dynamic Range: | PCM 0.0004% |
| Line Output Level: | Unbalanced: 2.0Vrms / Balanced: 4.0Vrms |
| Headphone Output Level: | 130mW / 32 ohms |
| Frequency Response: (Analogue Input) | 5Hz–100kHz (+0dB/-3dB) |
| Harmonic Distortion: (Analogue Input) | 0.001% (20Hz–20kHz) |
| S/N: | Phono (MC): 76dB / Phono (MM): 88dB / Balanced: 122dB / Line: 122dB |
| Phono Input Sensitivity: | MM: 8mV / MC: 80mV |
| Phono Input Impedance: | MC Low: 32 ohms / MC Mid: 100 ohms / MC High: 390 ohms / MM: 39 kohms |
| Power Consumption: | 7W / Less than 0.3W (Standby) / Less than 2W (Network Control: Bluetooth, Ethernet, Wi-Fi, USB) |
| Audio Feature Output Circuit: | New HDAM |
| Power Transformer: | Toroidal |
| Pre-Amplifier Circuit: | New HDAM High Grade / Full balance |
| Volume Control: | Electric (MUSES 72323) / Variable gain |
| Bass / Treble / Mid / Balance Control: | Yes / Yes / No / Yes |
| Tone Control Type: | Electric |
| Headphone Circuit: | Discrete |
| H/P Amp Gain Setting: | Yes (Low / Mid / High) |
| H/P On/Off Setting: | H/P off automatically when in use |
| DAC Circuit: | New MMM-Conversion |
| Dither: | MMM-Stream (Dither 1, 2, Off) |
| Noise Shaper: | MMM-Stream (Balanced, Natural, Dynamic Music, Dynamic Voice) |
| Digital Filter: | MMM-Stream (Filter 1, 2 Selectable) |
| Jitter Reducer: | Yes |
| DAC Master Clock Design: | Yes (No support for network playback) |
| Asynchronous Mode: (USB-B Input) | Yes |
| Isolator: (USB-B Input) | Yes (Complete Isolation System Duo) |

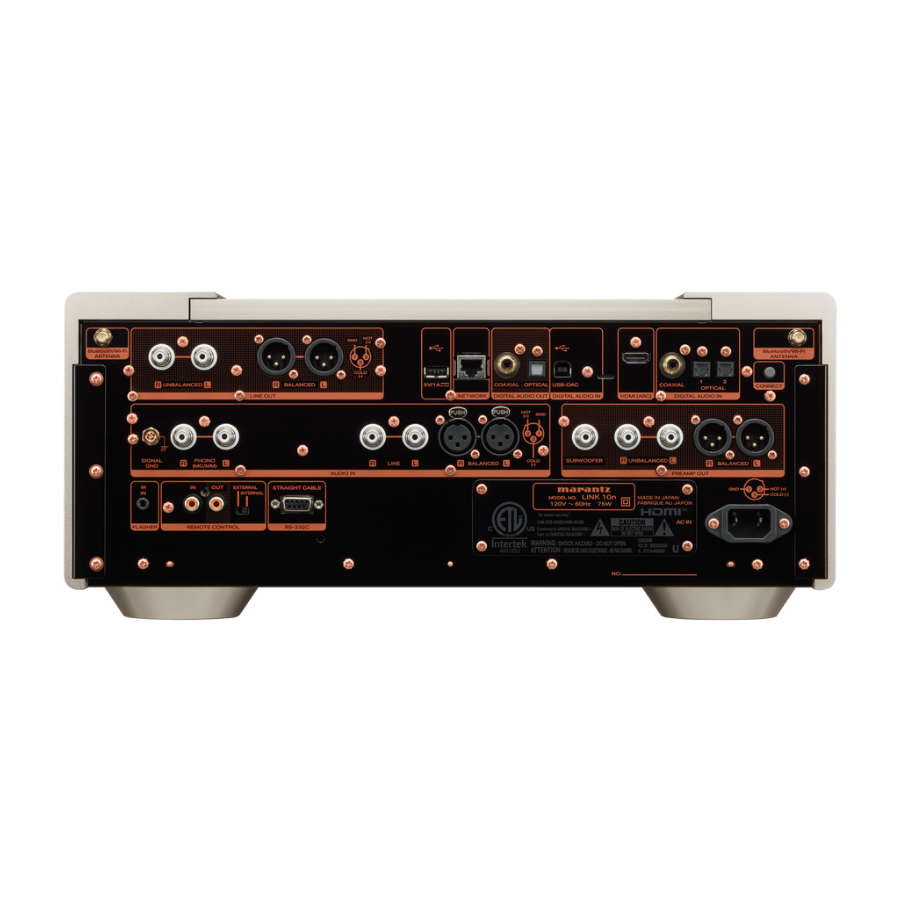

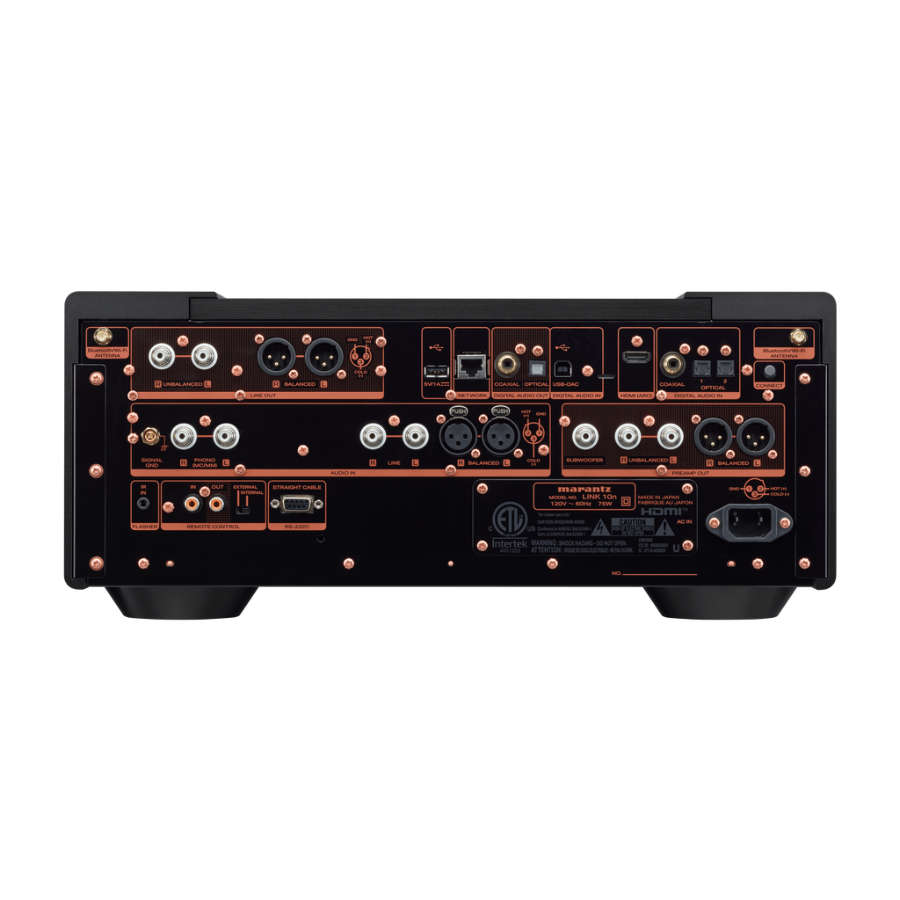

| Fixed Analogue Output: (RCA) | Cinch × 1 (Thick nickel-plated independent terminals) |
| Pre / Variable Audio Output: (RCA) | Cinch × 1 (Thick nickel-plated independent terminals) |
| Fixed Balanced XLR Output: | Yes (1 Pair) |
| Pre / Variable Balanced XLR Output: | Yes (1 Pair) |
| RCA Input: | Cinch × 1 (Thick nickel-plated independent terminals) |
| Balanced XLR Input: | Yes (1 Pair) |
| Phono Input: | Yes (MM / MC) |
| Phono EQ: | Marantz Musical Premium Phono EQ with Selectable MC impedance (3 positions) |
| Optical Input / Output: | 2 / 1 (On/Off switchable), Supports 44.1kHz - 192kHz |
| Coaxial Input / Output: | 1 / 1 (On/Off switchable), Supports 44.1kHz - 192kHz |
| HDMI Input / Output: | No / Yes (ARC) |
| Headphone Output: | Yes (Φ6.3 ×1) |
| Subwoofer Output: | Yes with LP filter adjustable |
| App: | HEOS app |
| Remote Controller: | 10-series universal remote control |
| Front Panel Display: | New HD TFT colour display |
| Front Display Dimmer: | 20 steps |
| Level Meter: | No |
| Volume Display: | 0–100 / 0.5 step (default), Infinity to -99.5dB - 0dB / 0.5 step switchable |
| Voice Assistant: | Apple Siri / Google Assistant |
| App Control: (Network Player) | No |
| External Amp Control with App: | Yes |
| Synchronise Amp Control with App: | Yes |
| HDMI CEC: | Yes |
| Remote Controller Model: | RC004PMND |
| Battery Type: | Yes (AAA ×2) |
| Power Cord: | Yes (ALL regions: Audio Grade OFC) |
| Other Accessories: | Stereo RCA cable ×1 / Remote connector cable ×1 / CoA card |
| Unit Dimensions: (W × H × D mm) | 440 × 192 × 472 (with antenna) |
| Cabinet Size: | 440 × 192 × 422 |
| Net Weight: | 33.3kg |
