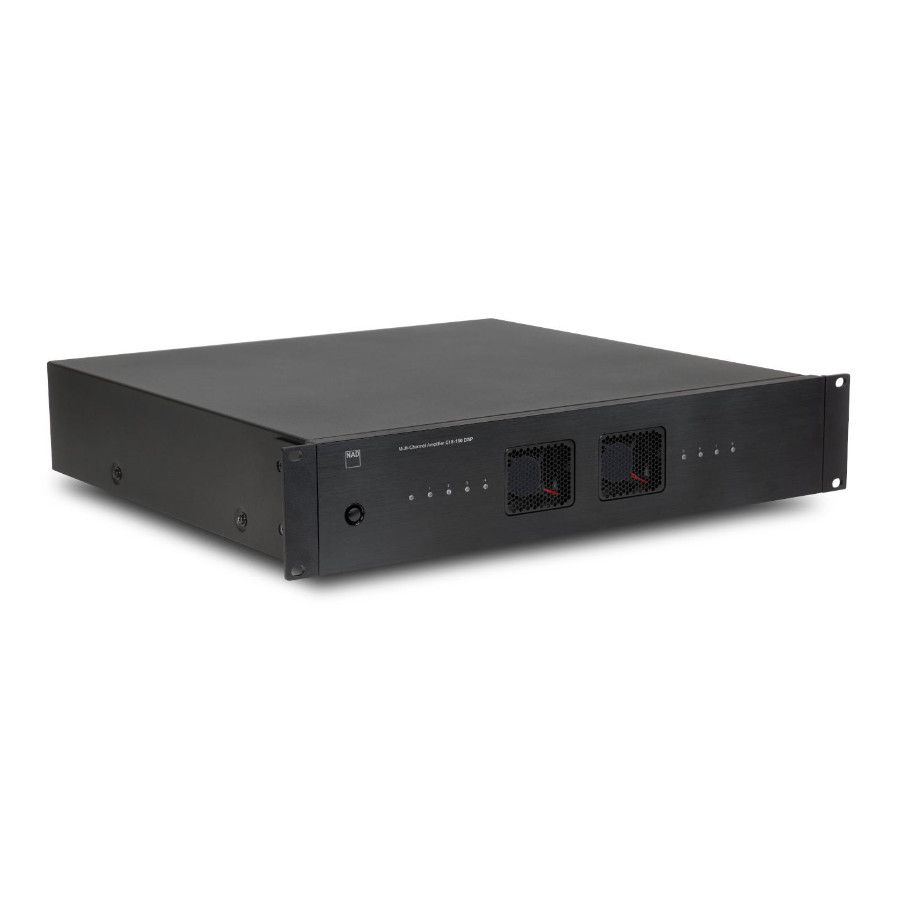

NAD CI 8-150 DSP Multi-Zone Power Amplifier
4599,00 €
The CI8-150 is our flagship CI amplifier. Powerful and refined, with 150 watts per channel of audiophile grade amplification, this distribution amplifier will drive anything you need it to without breaking sweat, and it will do it with class leading performance. NAD CI amplifiers will redefine the way you view distributed audio systems.
Full Disclosure Power
The CI 8-150 DSP offers NAD’s Masters Series performance in the rack space. As per NAD’s Full Disclosure Power (FDP) ratings, this sophisticated amp is capable of delivering a conservative 150 watts per channel at 8 ohms into all channels simultaneously, bridgeable to 280 watts per channel. IHF Dynamic Power in bridged mode is 4 x 670 watts per channel at 4 ohms. No matter what you throw at the CI 8-150, it won’t flinch.
Hybrid Digital Amplification
The CI 8-150 DSP is designed to deliver uncompromised performance within the custom environment. With its nCore output stage, the CI 8-150 DSP shares the same pedigree as some of NAD’s prestigious Masters Series amplifiers. What makes this amplifier unique is its ability to deliver a level of detail and refinement unmatched by any distribution amplifier on the market today. Being load invariant, the CI 8-150 is as comfortable driving a 4 ohm load as it does anis 8 ohm. The THD and noise floors are beyond what you’d expect from a CI amplifier, meaning that the dynamic range and linearity of this amplifier wouldn’t be out of place in a hi- fi set up.
Rack Space Efficiency and Reliability
NAD is keenly aware that reliability is paramount for a professional installer, so all models will be based on tried and true amplification platforms delivering stable and reliable performance. Since rack real estate is always at a premium, NAD CI amps have been designed to take up as little room as possible. Thermostatic fans draw in cool air from the front of the unit and out through the rear vents, meaning you don’t need to leave ventilation gaps between each unit for them to stay cool.
Web UI/DSP
The CI 8-150 DSP is network ready for simple set up, via the custom WebUI. This allows fast set up , of inputs & outputs, setting gain, stereo/mono and bridging of channels, creation of DSP profiles using the 5 band parametric EQ, plus high and low pass filters to allow the dialing in of the audio in each zone for optimal performance. A variety of power on methods are available as well as an Eco mode setting for minimal power consumption. I/O switching and routing can also be managed via compatible control systems with drivers available for Crestron, Control4, Elan, RTI and URC.
| Continuous output power into 8 ohms: | 150 W (ref. 20 Hz-20 kHz at rated THD – all channels driven), 180 W (ref. 20 Hz-20 kHz at rated THD – two channels driven) |
| Continuous output power into 4 ohms: | 180 W (ref. 20 Hz-20 kHz at rated THD – all channels driven), 300W (ref. 20 Hz-20 kHz at rated THD – two channels driven) |
| Continuous output power into 8 ohms at Bridged mode: | 280 W (ref. 20 Hz-20 kHz 0.02% THD – all channels driven), 500 W (ref. 20 Hz-20 kHz 0.02% THD – two channels driven) |
| THD (20 Hz – 20 kHz): | 0.02% (1 W to 120 W, 8 ohms and 4 ohms) |
| Signal-to-Noise Ratio: | 90 dB (A-weighted, 500 mV input, ref. 1 W out in 8 ohms) |
| Clipping power (All channels driven): | 160W (1kHz8ohms 0.1%THD), 200W (1kHz4ohms 0.1%THD) |
| Clipping power into 8 ohms at Bridged mode: | 300 W (1 kHz 0.1 % THD – all channels driven), 550 W (1 kHz 0.1 % THD – two channels driven) |
| IHF Dynamic Power (all channels driven) – 8 Ohms: | 180W |
| IHF Dynamic Power (all channels driven) – 4 Ohms: | 280W |
| IHF Dynamic Power (two channels driven) – 8 Ohms: | 200W |
| IHF Dynamic Power (two channels driven) – 4 Ohms: | 360W |
| IHF Dynamic Power (Bridged mode, All channels driven) – 8 Ohms: | 520W |
| IHF Dynamic Power (Bridged mode, All channels driven) – 4 Ohms: | 670W |
| IHF Dynamic Power (Bridged mode, Two channels driven) – 8 Ohms: | 600W |
| IHF Dynamic Power (Bridged mode, Two channels driven) – 4 Ohms: | 800W |
| Peak output current: | 26A (1ohm, 1ms) |
| Damping Factor: | 150 (ref. 8 ohms, 20 Hz to 6.5 kHz) |
| Frequency Response: | ±0.5dB (20Hz-20kHz) |
| Channel Seperation: | 75 dB (1 kHz), 65 dB (10 kHz) |
| Maximum undistorted input level: | 3300 mV |
| Input sensitivity (for 150 W in 8 ohms, maximum volume): | 1450 mV |
| Analog Input audio sense threshold (one channel with signal): | 3 ± 0.5 mVrms (ref. 100 Hz – 10 kHz) |
| Trigger IN level: | 3-30Vdc |
| Standby power: | 0.5 W |
| Gross dimensions (W x H x D)*: | 483x90x435mm (19 1/16 x 3 9/16 x 17 3/16 inches) |
| Shipping Weight: | 17.6 kg (38.8 lbs) |
