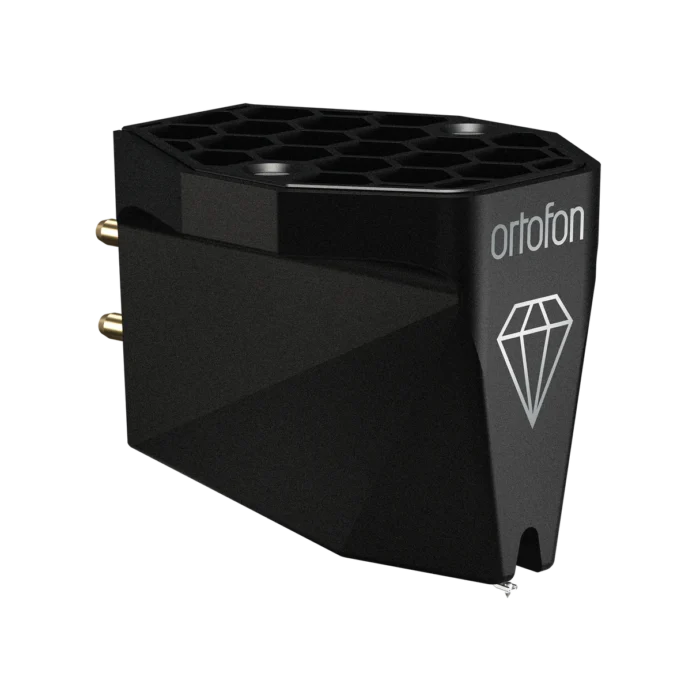

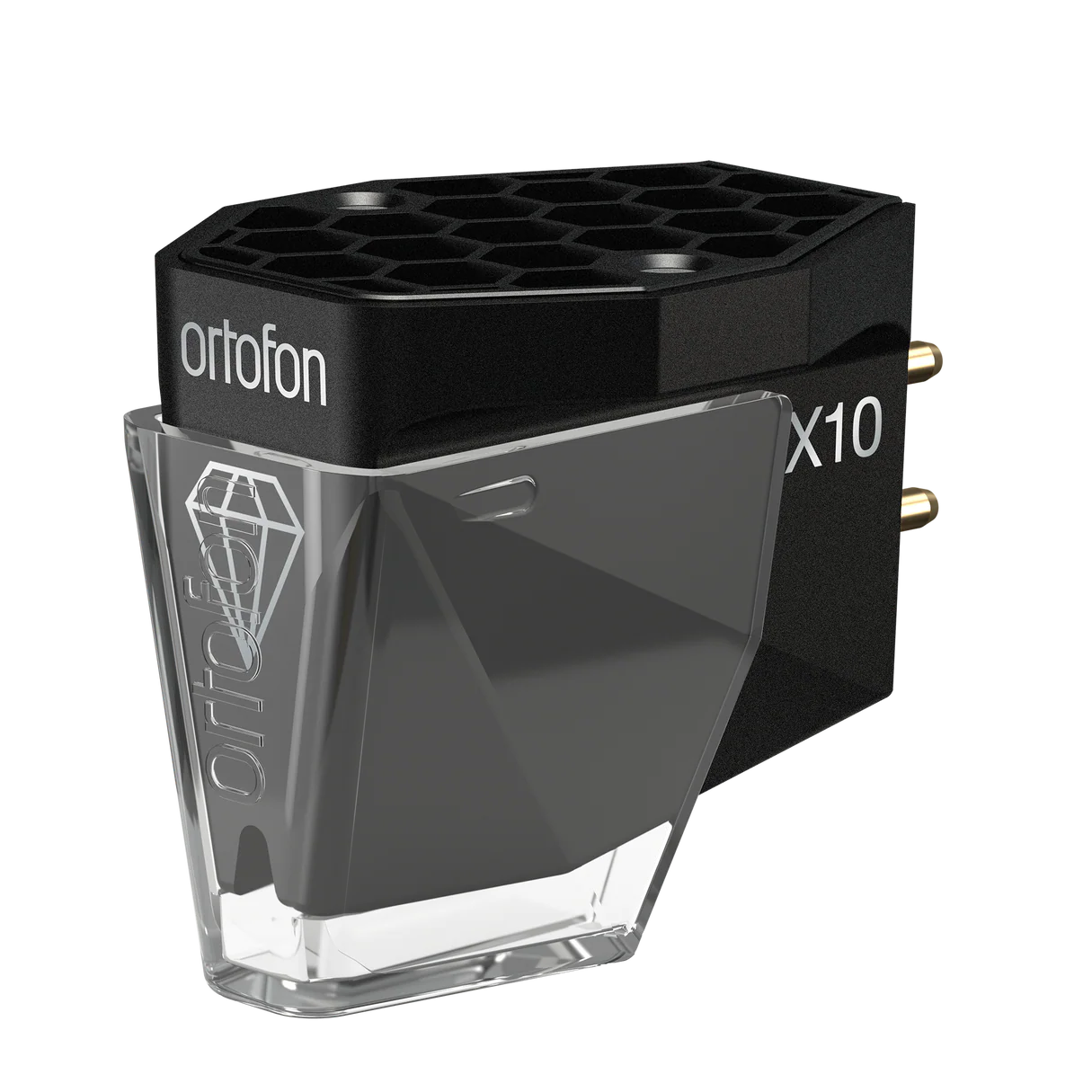

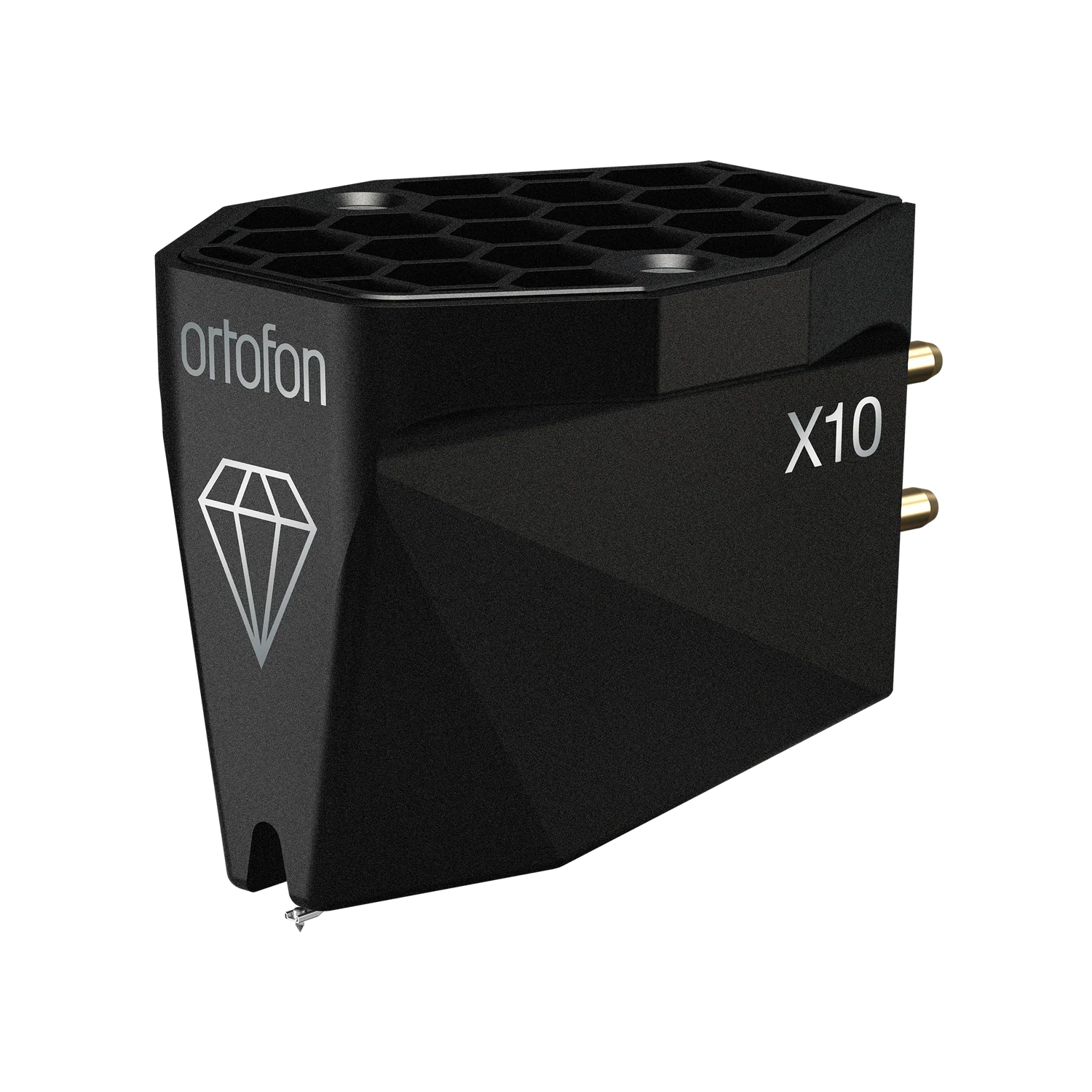

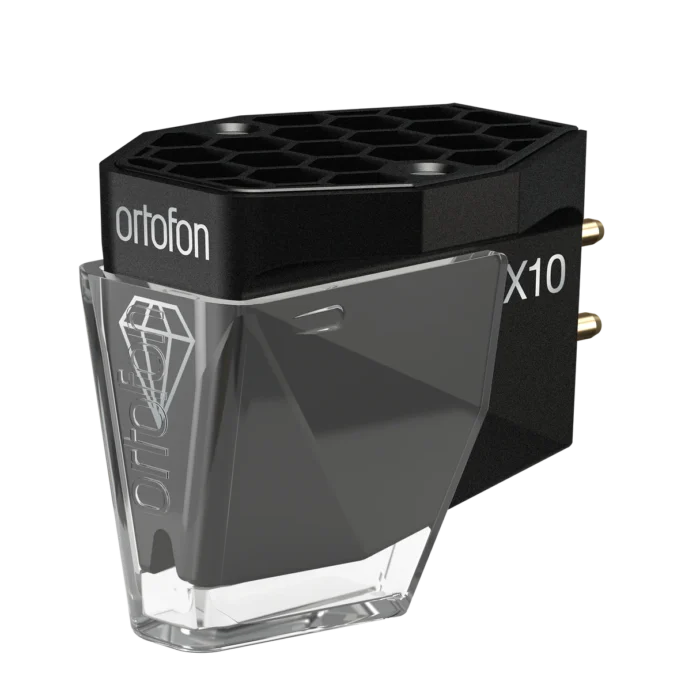

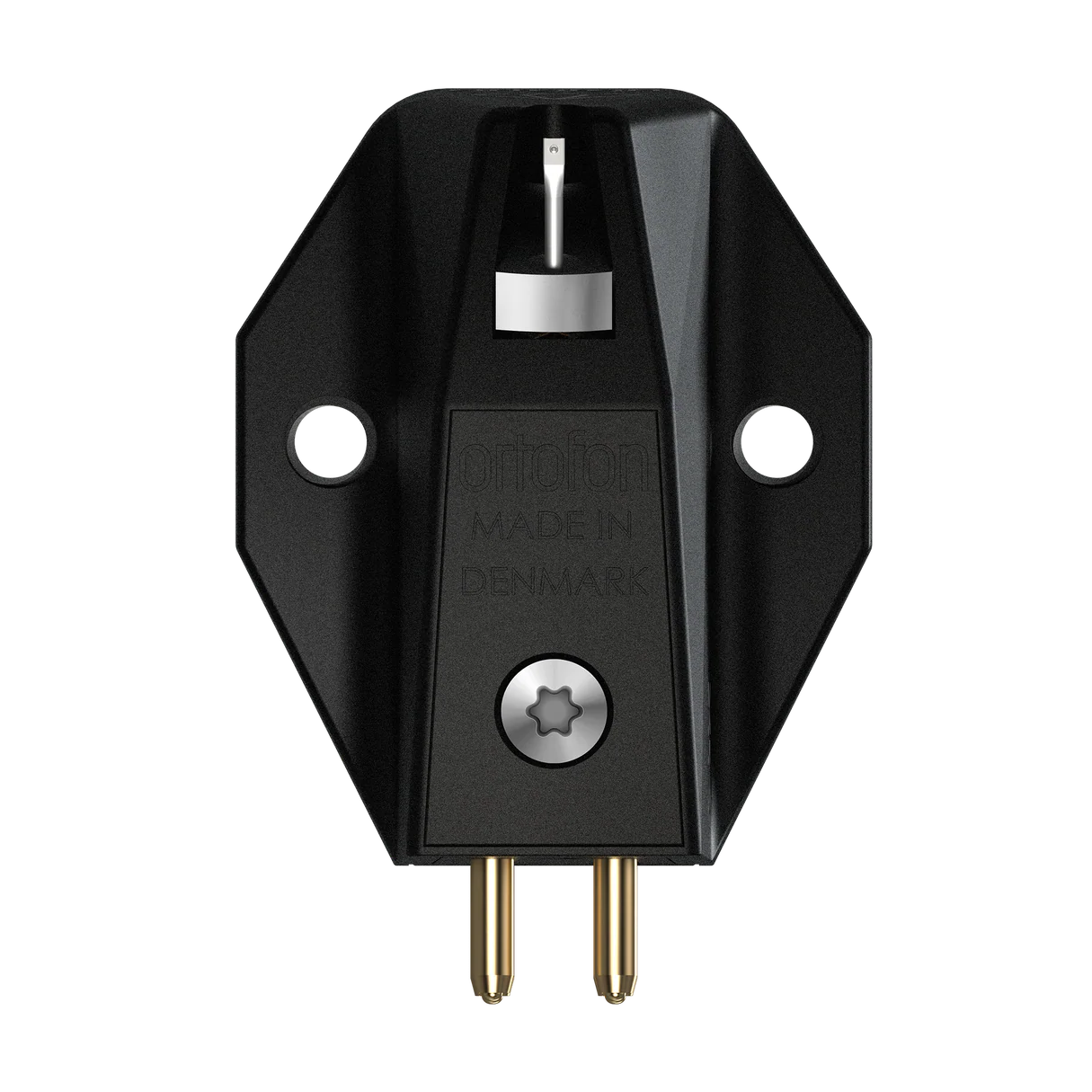

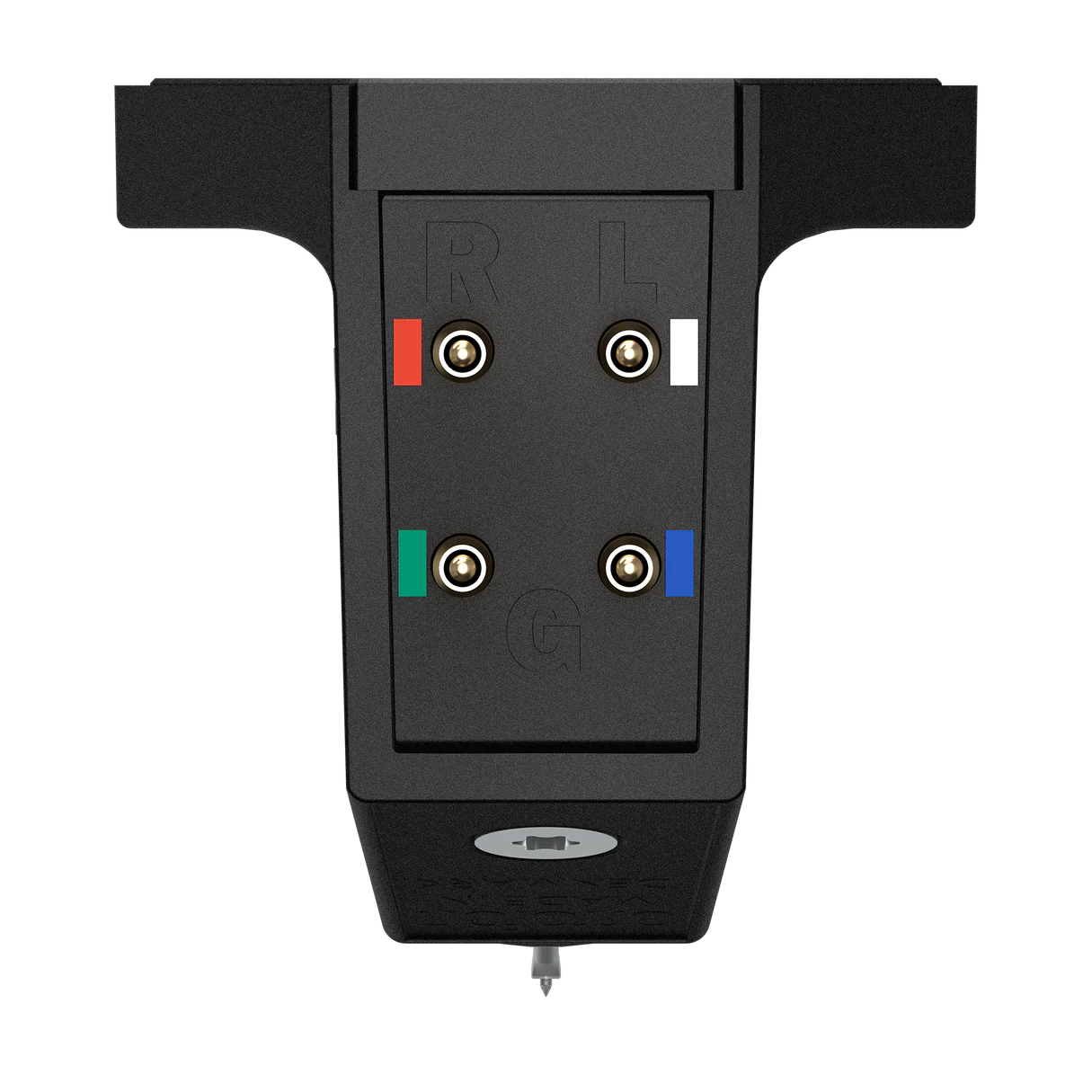

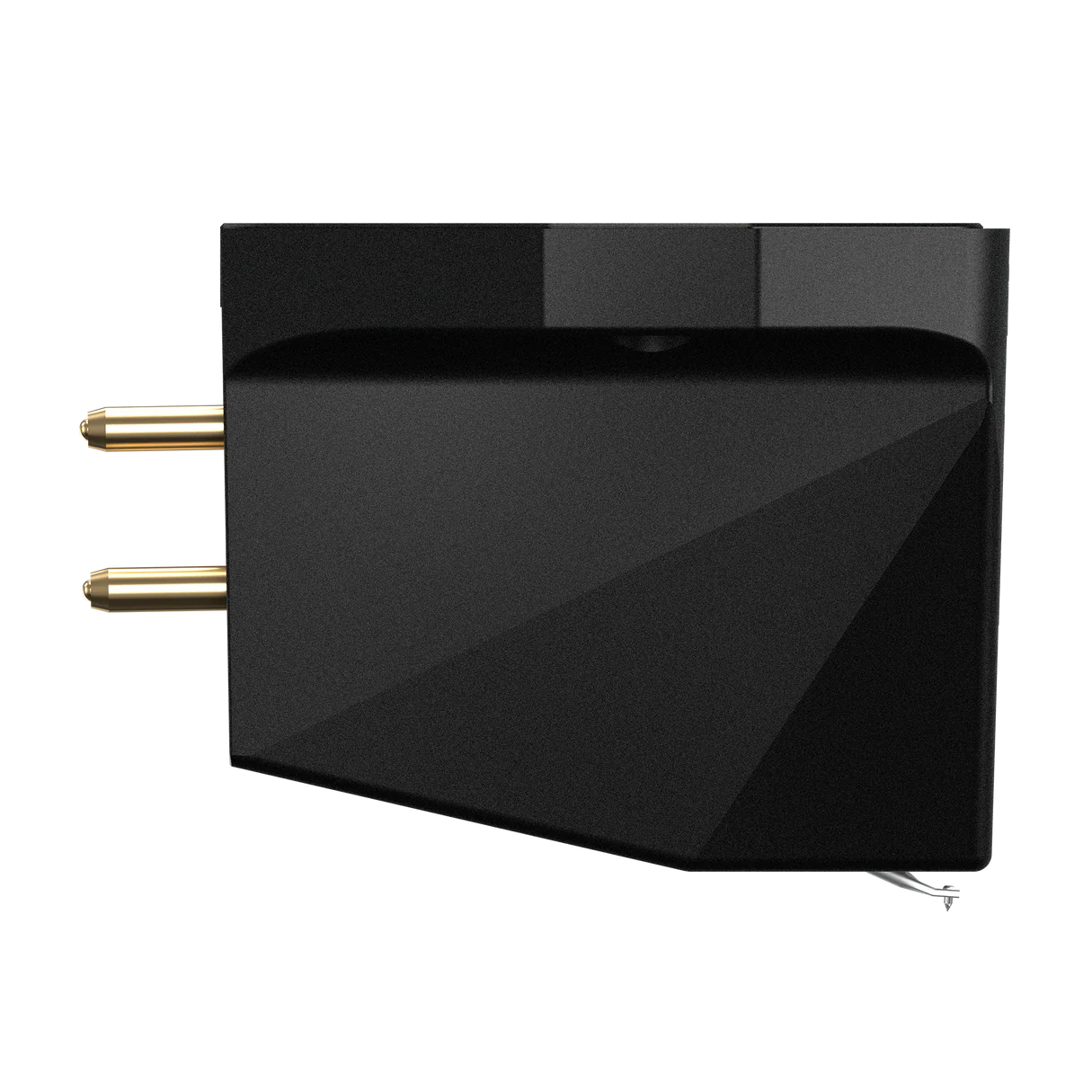

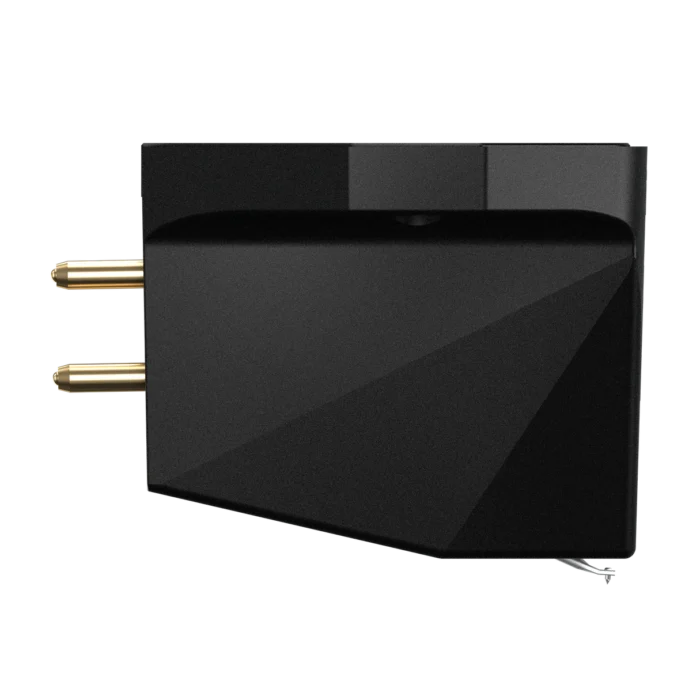

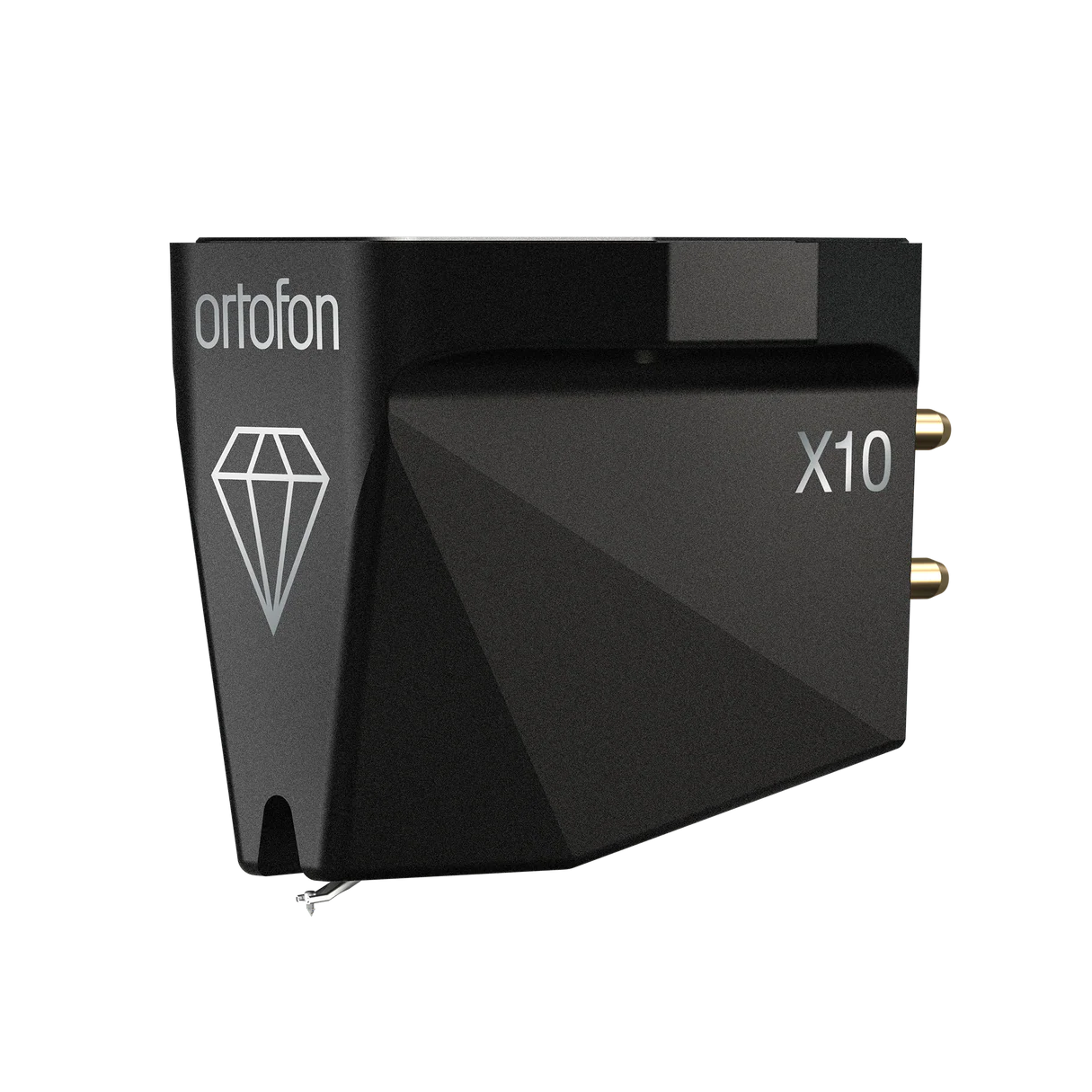

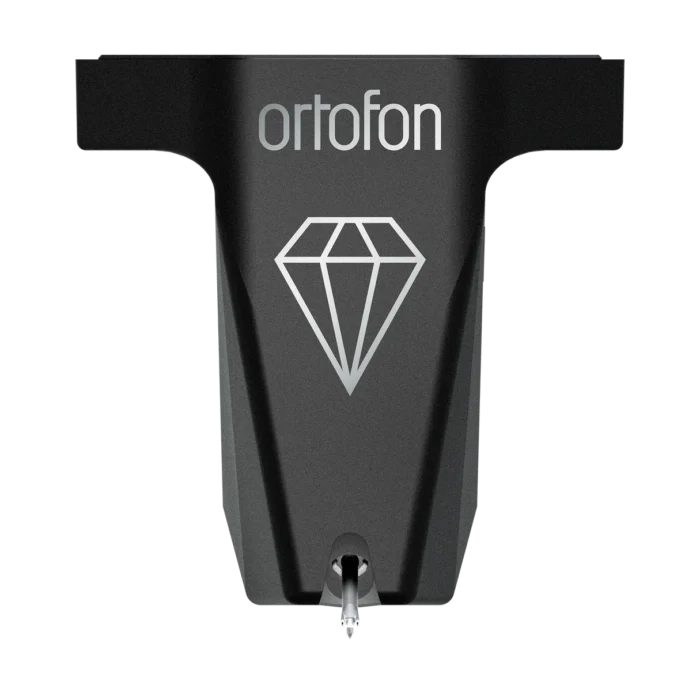

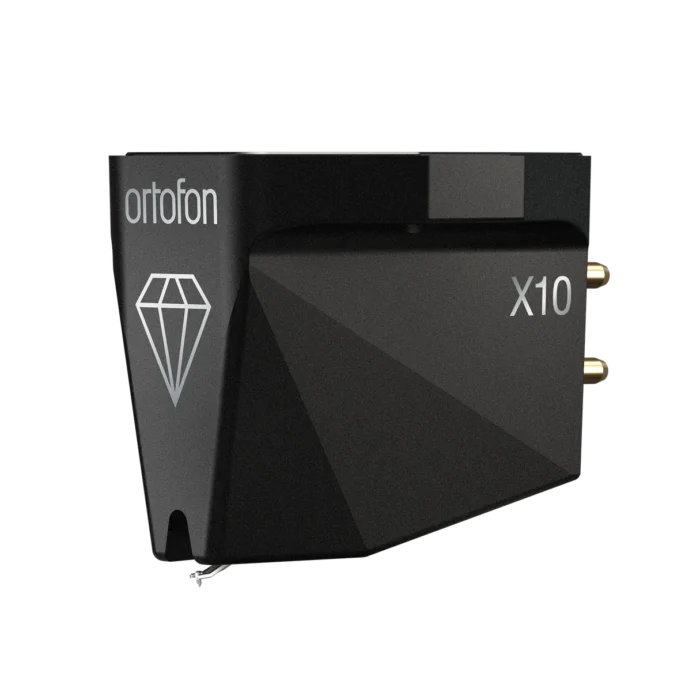

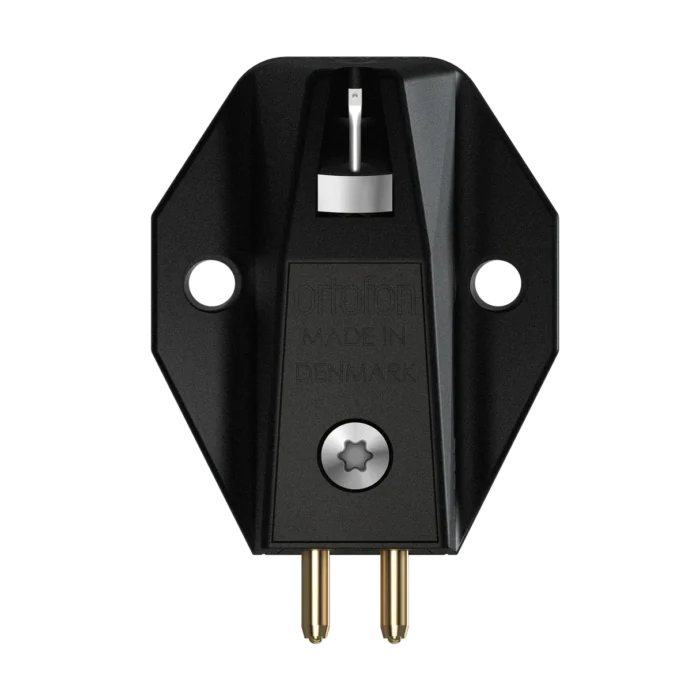

Ortofon MC X10 cartridge

299,00

The MC X Series embodies modern elegance with a distinctive design that seamlessly complements the tonearm. From afar, its silhouette speaks of minimalist refinement; up close, its intricate detailing reveals craftsmanship at every level. True to Ortofon’s signature aesthetic, it’s a sophisticated fusion of form and function.

Description

A New Benchmark in Analog Perfection

In the world of vinyl playback, the cartridge is where the journey begins. A pivotal point where music rises from the groove and transforms into immersive soundscapes. With the MC X Series, Ortofon sets a new benchmark in MC cartridge design, pushing premium Moving Coil technology to unprecedented levels of performance.

Pure Silver Coil System

All MC X cartridges feature coils wound with high-purity silver wire. The use of premium materials is to ensure exceptional signal clarity, delivering sound with unmatched precision and preserving every detail without interference.

Magnet system

The MC X Series introduces a newly developed magnet system with a one-piece pole cylinder integrated into a rear magnet yoke. Engineered for maximum magnetic efficiency and paired with pure silver coils, this configuration ensures a clean, powerful signal path that elevates overall performance.

Custom-Developed Rubber Dampers

In-house produced and developed rubber compounds form the core of the MC X Series’ mechanical damping system. Rubber dampers are essential for controlling the physical movement of the coils, maintaining stability, minimizing unwanted vibrations, and enabling precise coil motion. The result is superior tracking, reduced distortion, and musical accuracy.

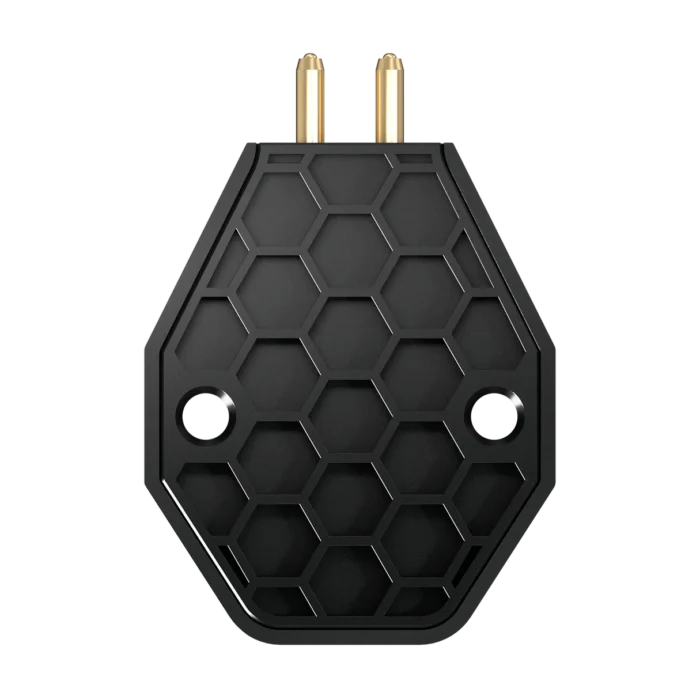

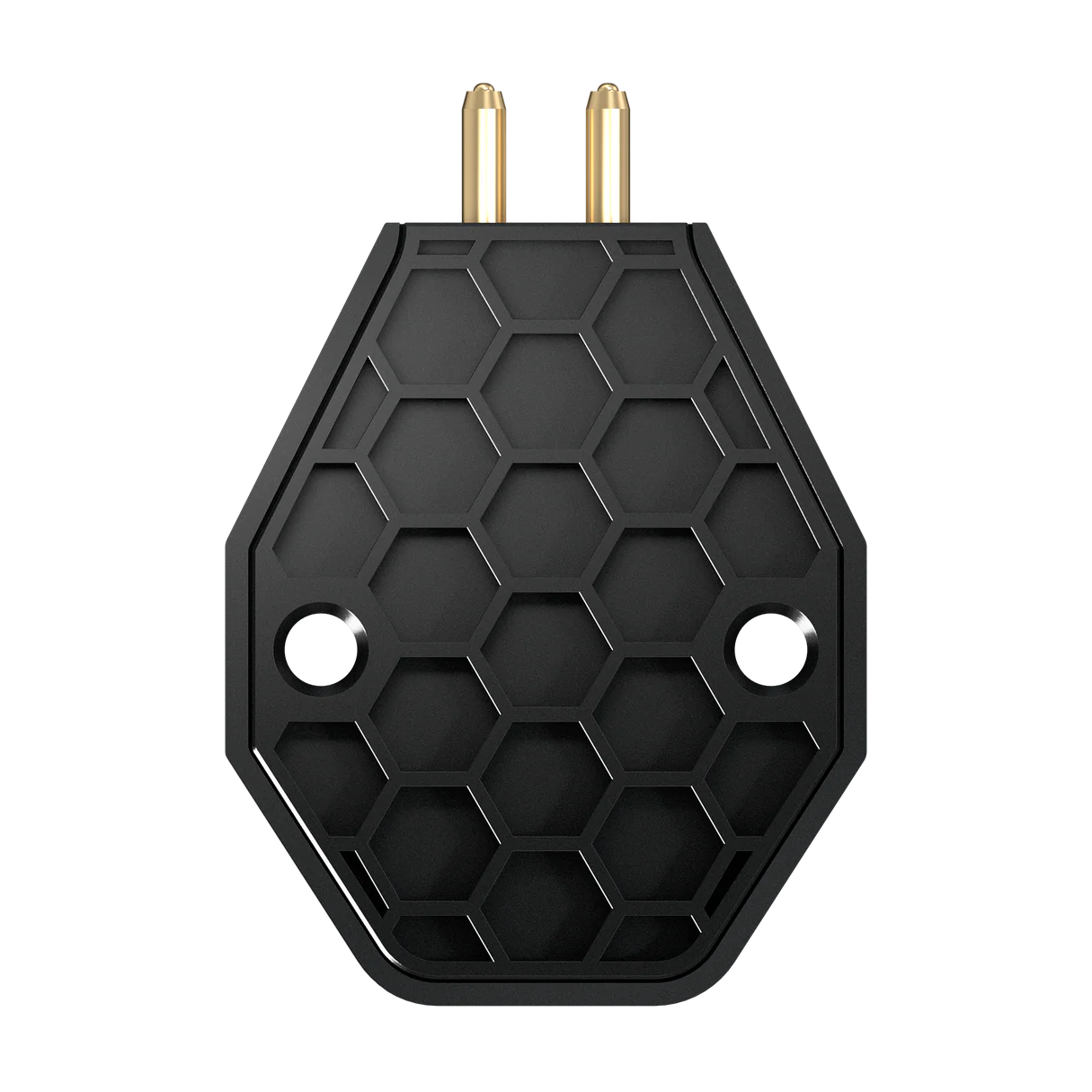

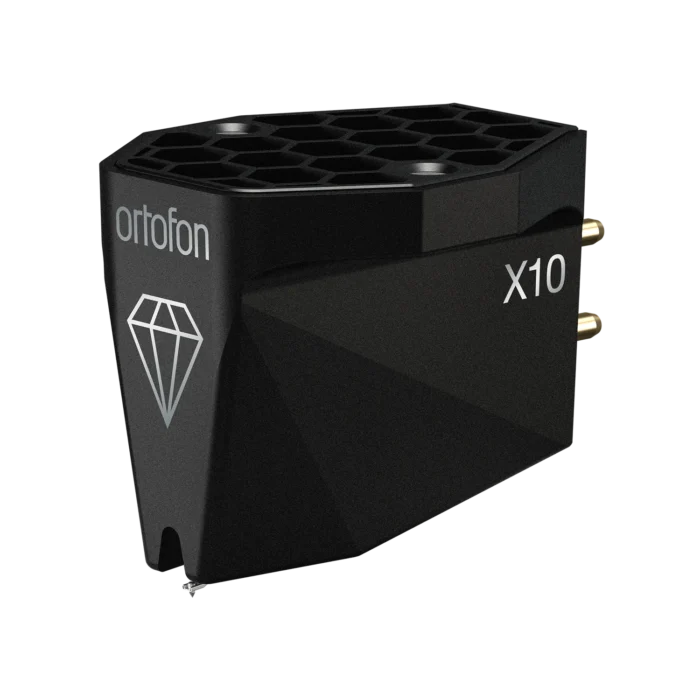

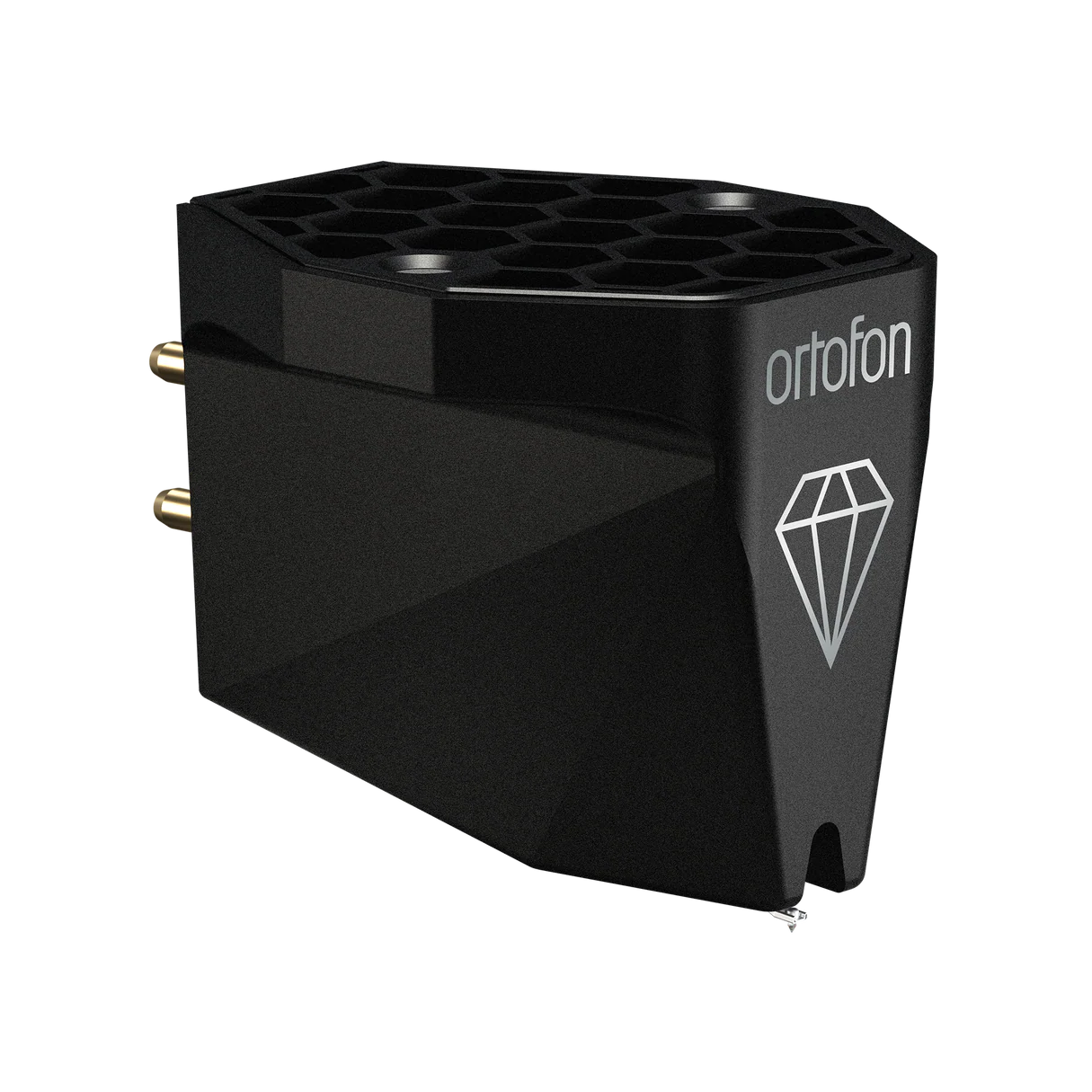

At the core of the MC X Series is an advanced honeycomb-structured stainless-steel frame, created using Metal Injection Molding (MIM) technology. This refined construction ensures superior mechanical stability, providing an ideal foundation for precise and accurate sound reproduction.

Specifications
      • Channel balance at 1 kHz
        0.5 dB
      • Output voltage at 1 kHz, 5cm/sec
        0.4 mV
      • Channel separation at 1 kHz
        24 dB
      • Frequency response 20 Hz - 20 kHz
        +/-2 dB
      • Compliance, dynamic, lateral
        13 μm/mN
      • Cantilever material
        Aluminium
      • Stylus type
        Elliptical
      • Stylus tip radius
        r/R 8/18 μm
      • Stylus suspensions
        Ortofon exclusive
      • Coil system
        Quad coils
      • Tracking force, recommended
        2.0 grams
      • Internal impedance, DC resistance
        6 Ω
      • Coil wire material
        High-purity silver
      • Cartridge weight
        8.6 grams
      • Recommended load resistance
        > 50 Ω
About Ortofon
More than a century of accuracy in sound On the 9th of October 1918, the two Danish engineers, Axel Petersen (1887-1971) and Arnold Poulsen (1889-1952) founded the Electrical Phono Film Company. Their aim was to explore the possibility of high-class recording and developing one of the first synchronized sound film systems in the world. Today, Ortofon is a micro-mechanical powerhouse, which develops, manufactures and markets the world acclaimed Ortofon phono cartridges. We benefit from being established in Denmark, a country recognized for its strong tradition in acoustics and acoustic measurement equipment, in addition to all aspects of high-end audio. Acoustics, materials, technology and micro mechanics are key competences in Ortofon's technological prowess. Research and development is done with the company's own engineers supported by a strong network of acoustic know-how and industrial design in Denmark. The products are sold worldwide through a network of more than 60 importers and Sales subsidiaries in the USA and in Japan.
