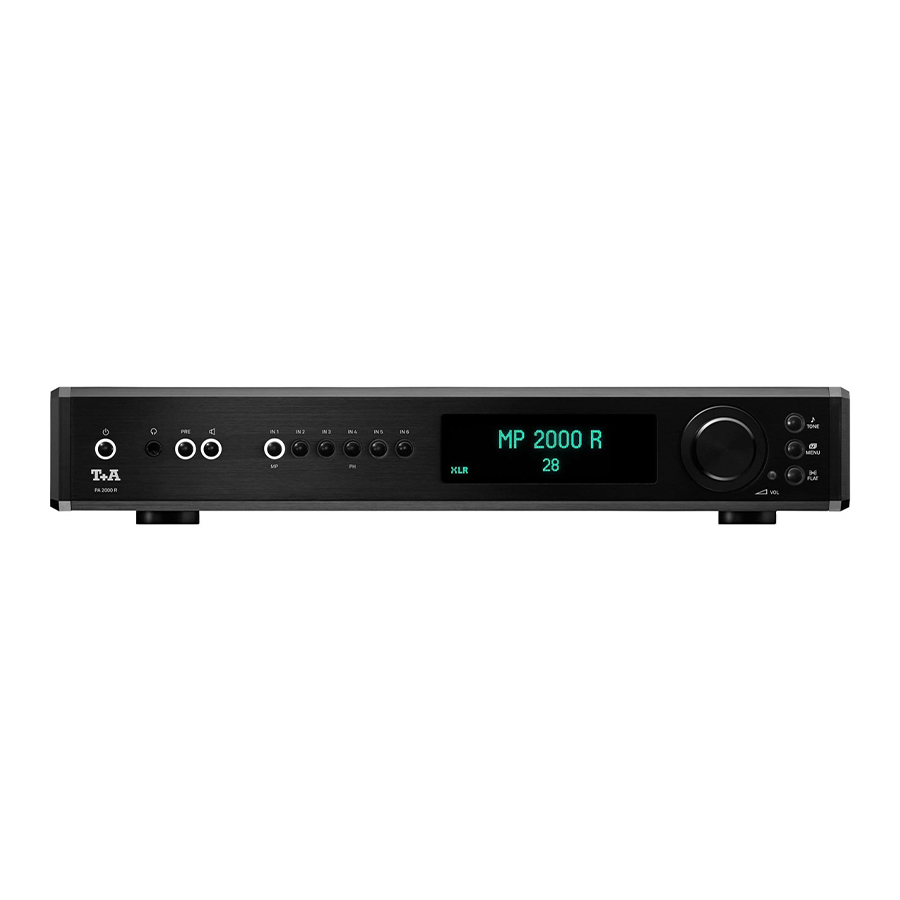

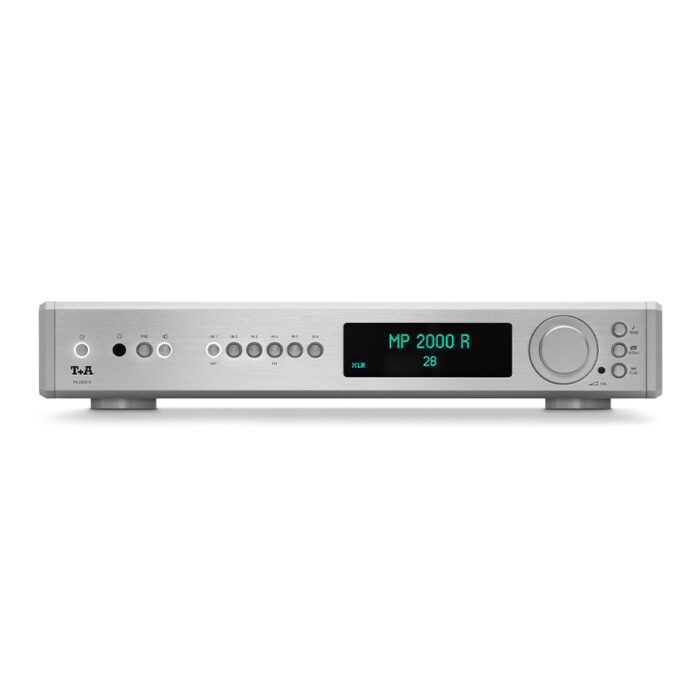

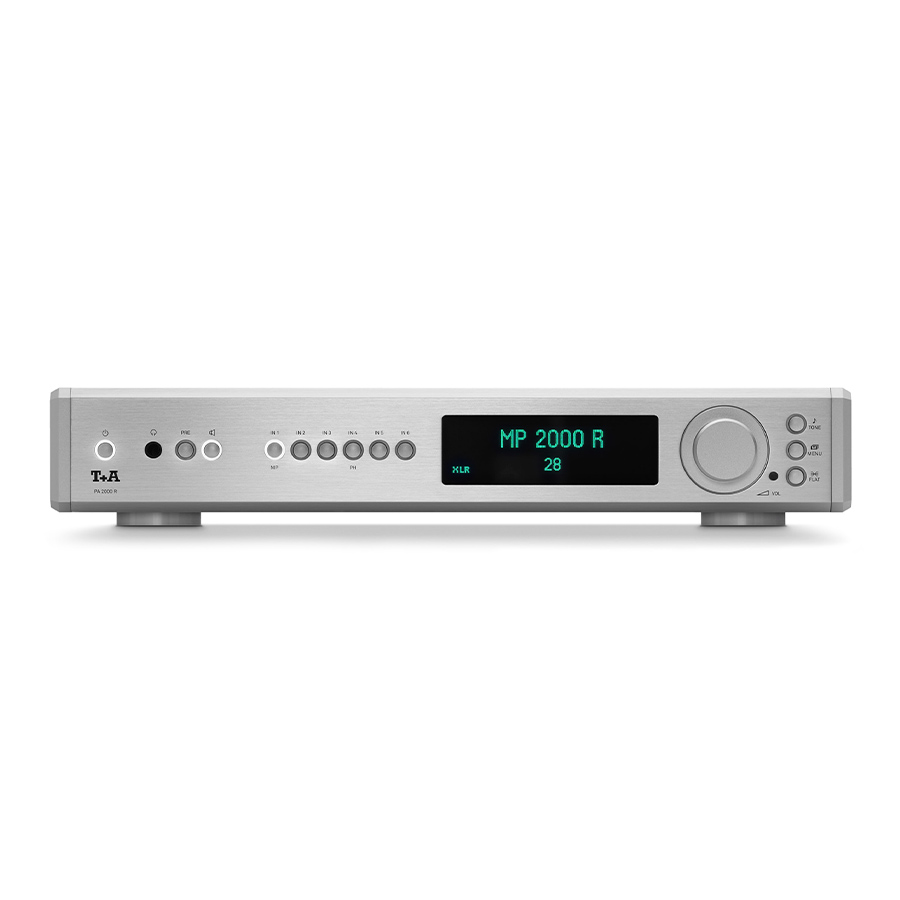

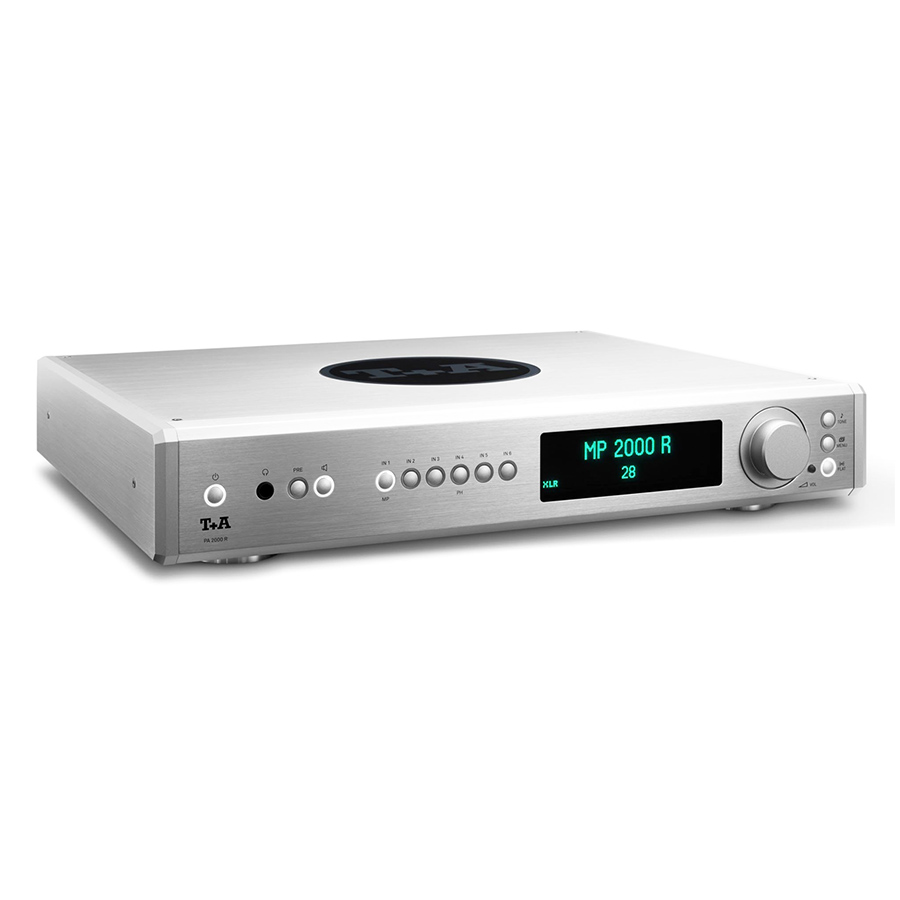

T+A PA 2000 R Integrated Amplifier
7900,00 €
Building neat, compact integrated amplifiers offering high output power and superb sound quality is an art at which T+A has no peer. As proof of this claim we present the PA 2000 Rintegrated amplifier. It is incredibly dynamic, powerful and incisive. There are two reasons behind these characteristics: the extremely linear output stages with very low negative feedback, which are a completely new development, and the new form of mains power supply employed.
Overview
T+A designed the latter specifically for audio devices, to ensure that they are ultra stable under load, with no danger of collapse even when handling extremely high peak levels. The result is that the T+A PA 2000R integrated amplifier can deliver continuous power of more than 180 Watts per channel into 4 Ohms loudspeakers, enabling it to drive impedance critical loudspeakers whilst maintaining effortless control.
Precision Gold contact relays are employed to switch loudspeakers, inputs and internal signal circuits with total precision and zero losses. Separate tone controls are present for each channel (which can also be by-passed completely) gives the user full control of the performance required within any system. An optional audiophile phono preamplifier module for MM or MC can simply be plugged in. For operation in a surround system the T+A PA 2000R integrated amplifier can be set to Surround Pass Through mode, selected by a trigger signal.

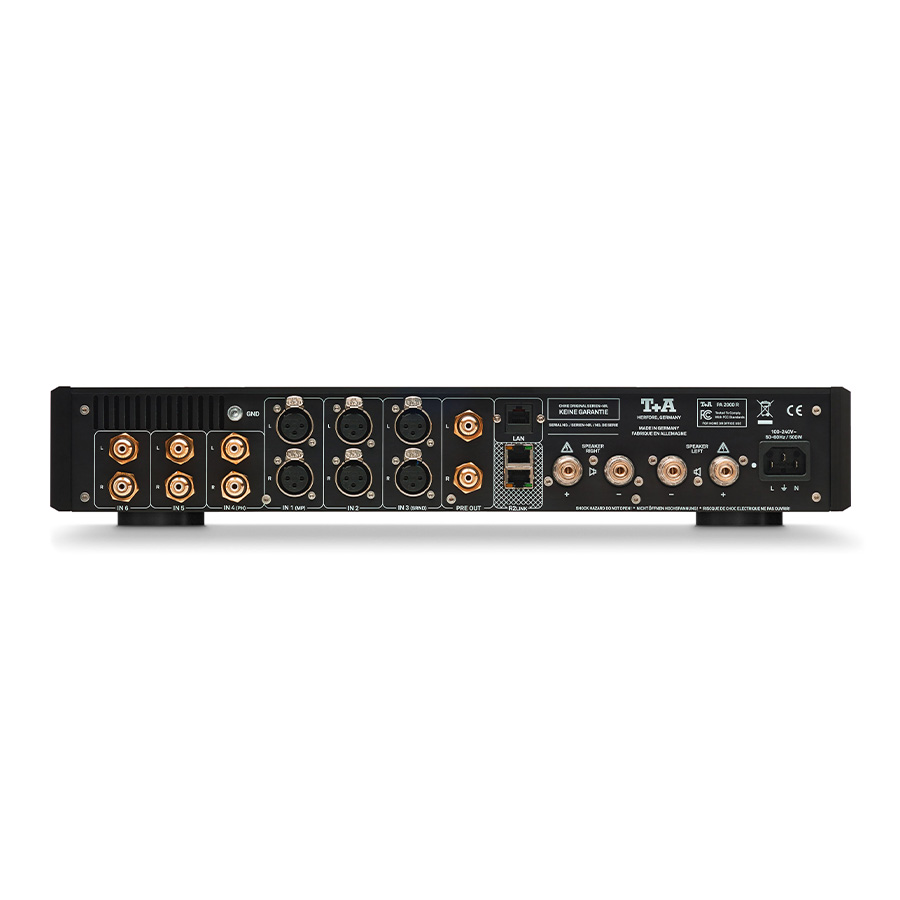

The T+A PA 2000R integrated amplifier forms the perfect control center for a high end system. It is equipped with three symmetrical inputs (XLR), three high quality single ended inputs (RCA), a preamplifier output (RCA) and heavy duty loudspeaker terminals machined from ultra pure non magnetic Brass. A headphone socket is fitted to the front panel.
| Pre-amplifier stage | |
| Frequency response + 0 / − 3 dB: | 0,5 Hz – 300 kHz |
| Signal:noise ratio, unweighted/A-weighted: | 105/109 dB |
| Total harmonic distortion/Intermodulation: | < 0,001 % / < 0,001 % |
| Channel separation: | > 90 dB |
| Loudness: | Switchable, variable to suit loudspeaker efficiency |
| Tone controls, Bass, Treble: | Switchable, channel-separate, −6 … +8 dB, −6 … +8 dB |
| Nominal input sensitivity | |
| High level (RCA): | 3 × 250 mV … 4 Veff/20 kOhms |
| Balanced (XLR): | 3 × 500 mV … 8 Veff/5 kOhms |
| Phono-MM (optional*): *Phono module replaces one high-level input | 1 – 5 mV, 16 Capacitances |
| Phono-MC (optional*): *Phono module replaces one high-level input | 60 – 1000 µV, 16 Impedances |
| Outputs | |
| Headphone: | 50 Ohms |
| PRE out RCA: | Nom 1 Veff, Max 9,5 Veff, 75 Ohms |
| Output stage | |
| Nominal output per channel: | into 8 Ohms 100 Watts, into 4 Ohms 200 Watts, into 2 Ohms 300 Watts |
| Frequency response + 0/– 3 dB: | 1 Hz – 150 kHz |
| Slew rate: | 60 V/µs |
| Damping factor: | > 65 |
| Total harmonic distortion: | < 0,02 % |
| Reservoir capacity: | 60000 µF |
| Mains / Accessories / Dimensions | |
| Control interface: | R2-Link |
| Remote control: | SRC 1 |
| Mains connection: | 100 – 120 V oder 200 – 240 V, 50 – 60 Hz, Max. 1000 Watts |
| Standby: | < 0,5 W |
| Additional features: | Trigger input +5V … 20V via adapter plug for remote power-on. Input 3 (symmetrical) or 5 (asymmetrical) can be configured as Surround Pass Through |
| Dimensions (H x W x D): | 8,2 × 46 × 40 cm |
| Weight: | 10,5 kg |
| Finishes: | Silver anodised aluminium (43), black anodised aluminium (42), brushed |
