Lumin Amp Power Amplifier
13000,00 €
Lumin Amp is a high-performance Class AB stereo power amplifier designed to match Lumin digital sources and complete a clean, modern streaming-based hi-fi system.
With fully discrete voltage and current gain stages, true dual-mono architecture, balanced and unbalanced inputs, stereo / dual mono / bridged operation and a 600VA toroidal transformer, Amp is built for systems where the digital front end, amplification and loudspeakers need to work together as one carefully matched system.
Hi-Fi Market is an authorised Lumin dealer in Estonia.
Lumin Amp Power Amplifier is a high-performance Class AB stereo power amplifier designed to complement Lumin network players, network hubs and digital transports in a complete hi-fi system.

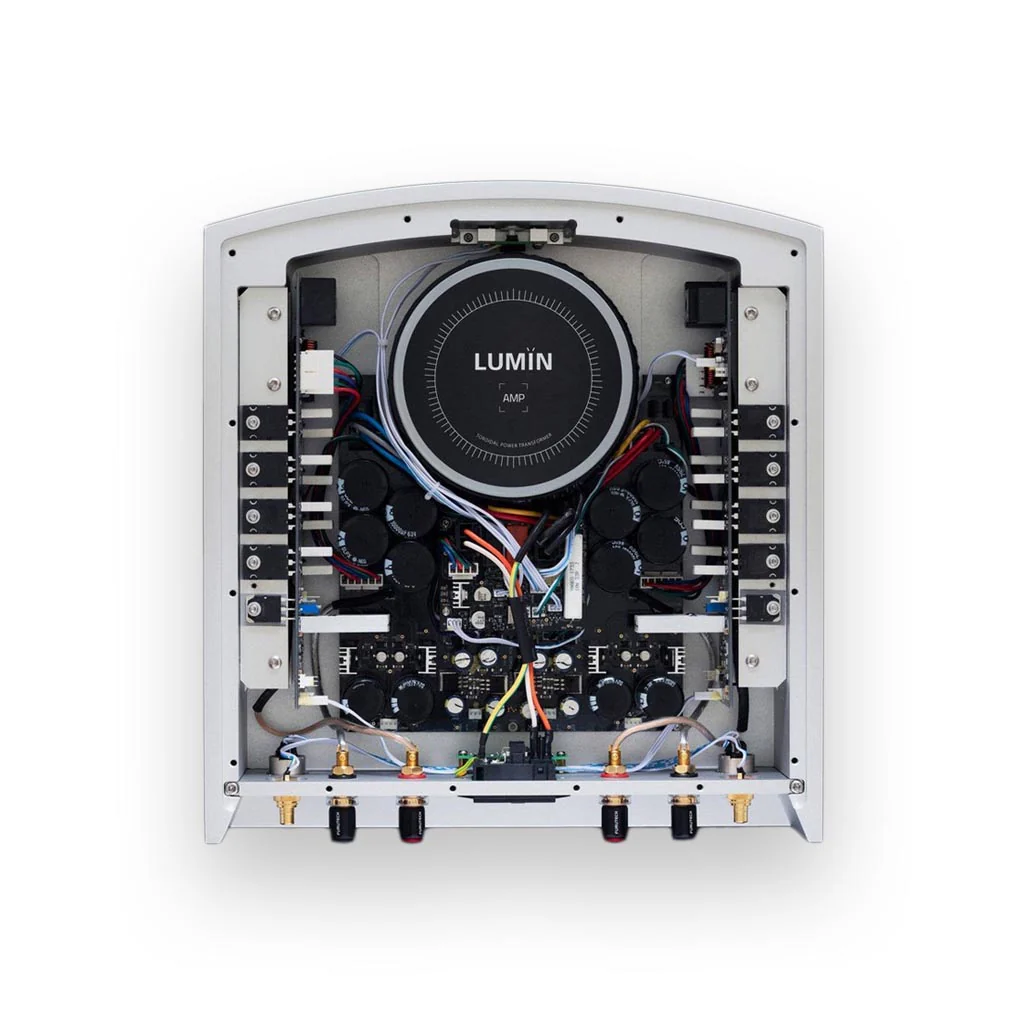

The Lumin Amp is built around fully discrete Class AB voltage and current gain stages, with a true dual-mono power supply and amplifier design, DC-coupled signal path and a 600VA custom toroidal transformer. It supports stereo, dual mono and bridged operation, making it flexible enough for different system layouts.
While Lumin is best known for digital audio and streaming components, the Lumin Amp allows customers to build a more complete Lumin-based system with dedicated power amplification. It is especially suitable for use with Lumin network hubs, preamplifiers or digital sources that provide volume control and analogue output.

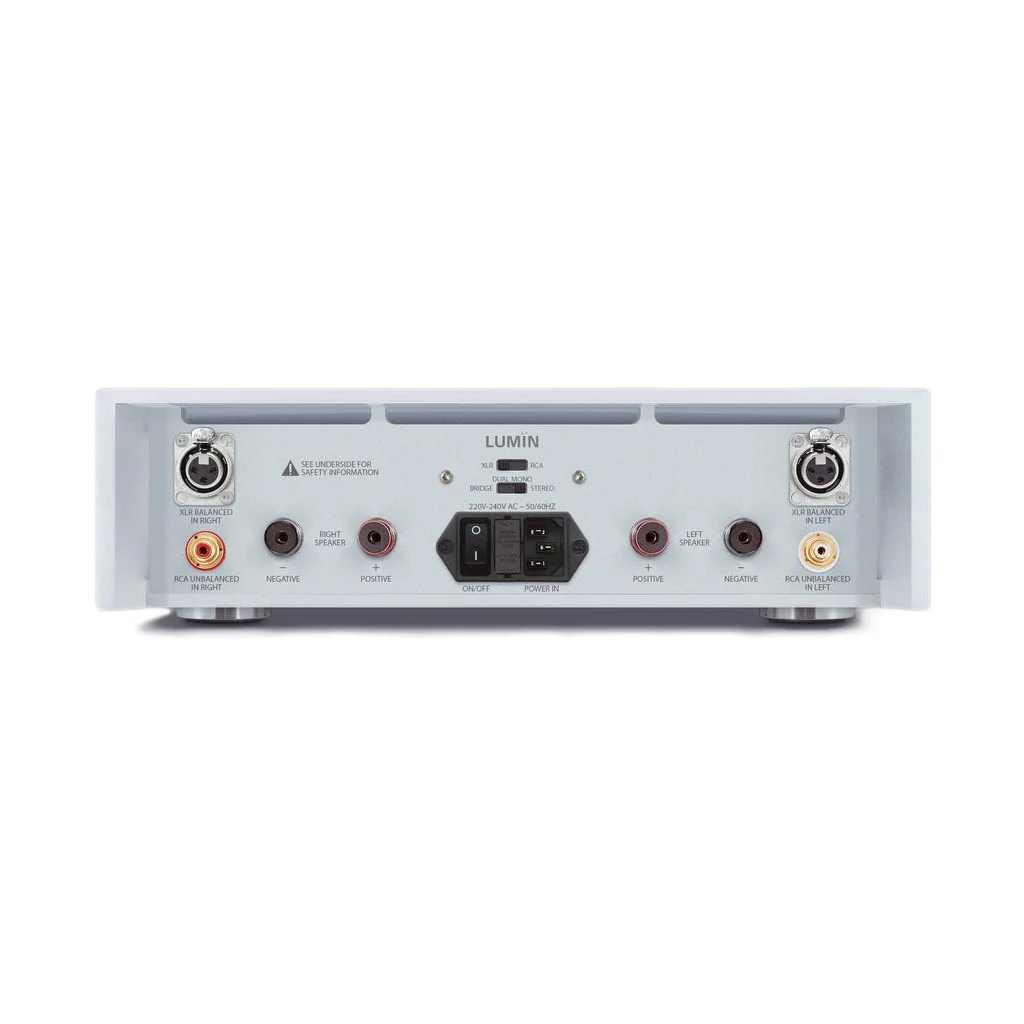

The amplifier offers both balanced XLR and unbalanced RCA inputs, making it suitable for different system layouts. It can be connected to a Lumin P2, P1 Mini, dedicated preamplifier or other high-quality source component depending on the final system architecture.
In stereo mode, Lumin Amp can be used as a conventional power amplifier for a refined two-channel system. In dual mono or bridged configurations, it also gives the listener a clear path toward more demanding loudspeakers or future system upgrades.
For best results, the Lumin Amp should be paired with suitable loudspeakers, high-quality source components, carefully selected interconnects and speaker cables. It is a natural partner for Lumin-based systems where long-term compatibility and system balance are important.
Hi-Fi Market is an authorised Lumin dealer in Estonia. Contact us or visit our showroom in Tabasalu near Tallinn to discuss how the Lumin Amp can be integrated into your hi-fi system.
LUMIN AMP SPECIFICATION
-
OPERATING MODE: (selectable)
- Stereo, Dual Mono or Bridged mode
-
INPUT: (selectable)
- 1 x XLR pair (pin 2 hot), 1 x RCA pair
-
POWER:
- 160W per channel into 8Ω
- 320W per channel into 4Ω
- 640W into 8Ω (Bridged)
-
POWER SUPPLY:
- Available in 220–240V AC and 110–120V AC versions ~ 50/60Hz
-
POWER CONSUMPTION:
- Standby <0.5W
- Idle 40W
- Max 700W
-
FREQUENCY RESPONSE:
- 20hz - 40000hz ± 0.1db
-
SIGNAL TO NOISE RATIO:
- 103db, unweighted
-
INPUT IMPEDANCE:
- 200kΩ Balanced (XLR)
- 100kΩ Unbalanced (RCA)
-
OUTPUT IMPEDANCE:
- 0.1Ω
-
INPUT SENSITIVITY:
- 1.16Vrms
-
GAIN:
- +26dB (Stereo, Dual Mono)
- +32dB (Bridged)
-
PROTECTION:
- DC, overload and overheating protection
-
FINISHES:
- New black and silver anodised finish to match the latest LUMIN players
-
CONSTRUCTION:
- CNC-machined from a single billet for front, top and sides. Thick 8mm walls, rear panel and base plate
-
DIMENSIONS:
- 350mm (W), 374mm (D), 104mm (H)
-
WEIGHT:
- 19kg
Recommended categories for building a Lumin-based system: - Network Players & Streamers - Music Servers - Network Audio - DACs - Preamplifiers - Power Amplifiers - Audio Cables To discuss the right Lumin solution for your system, contact us. We can help you choose between a network player, digital transport, music server or network hub based on your existing components, listening habits and future upgrade plans.
