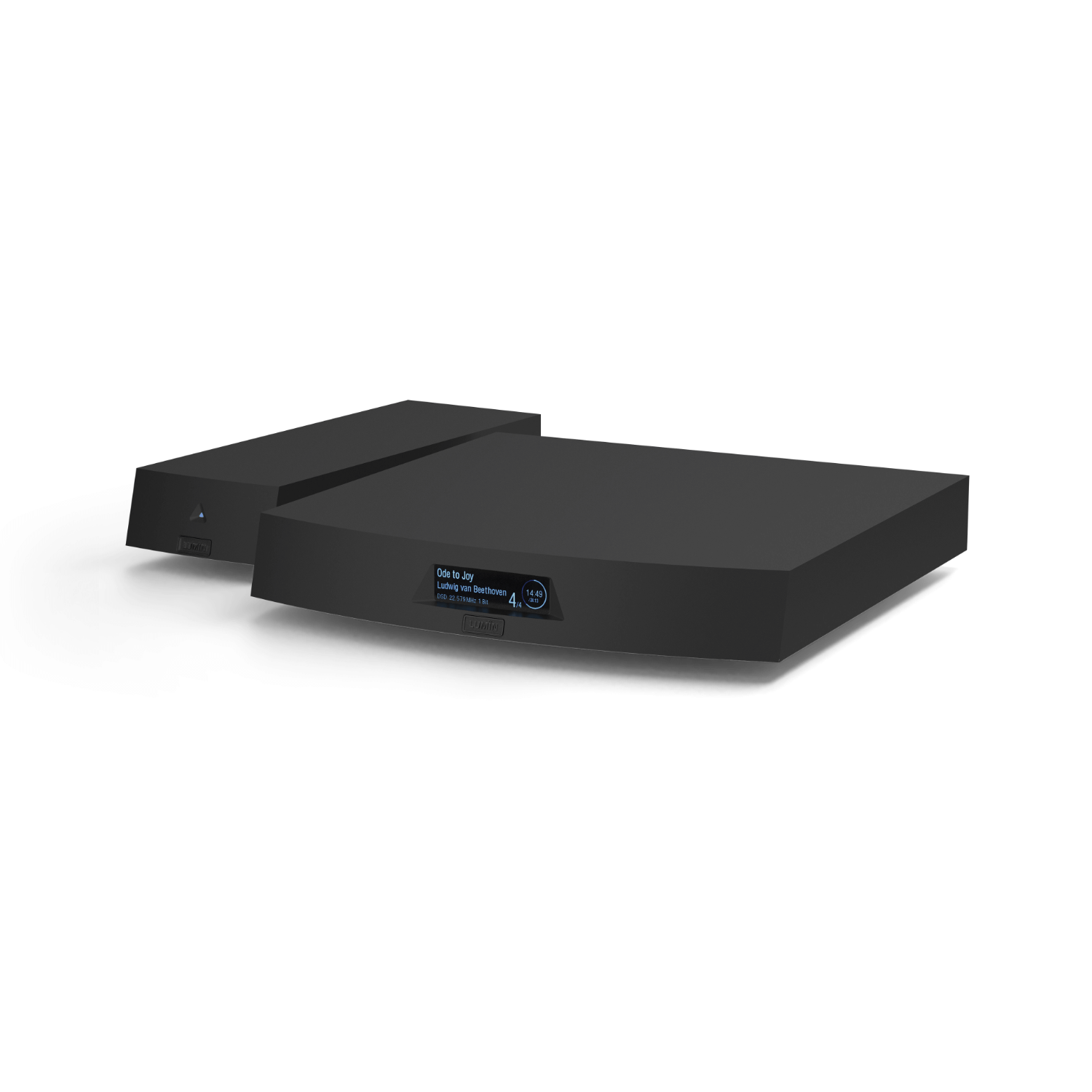

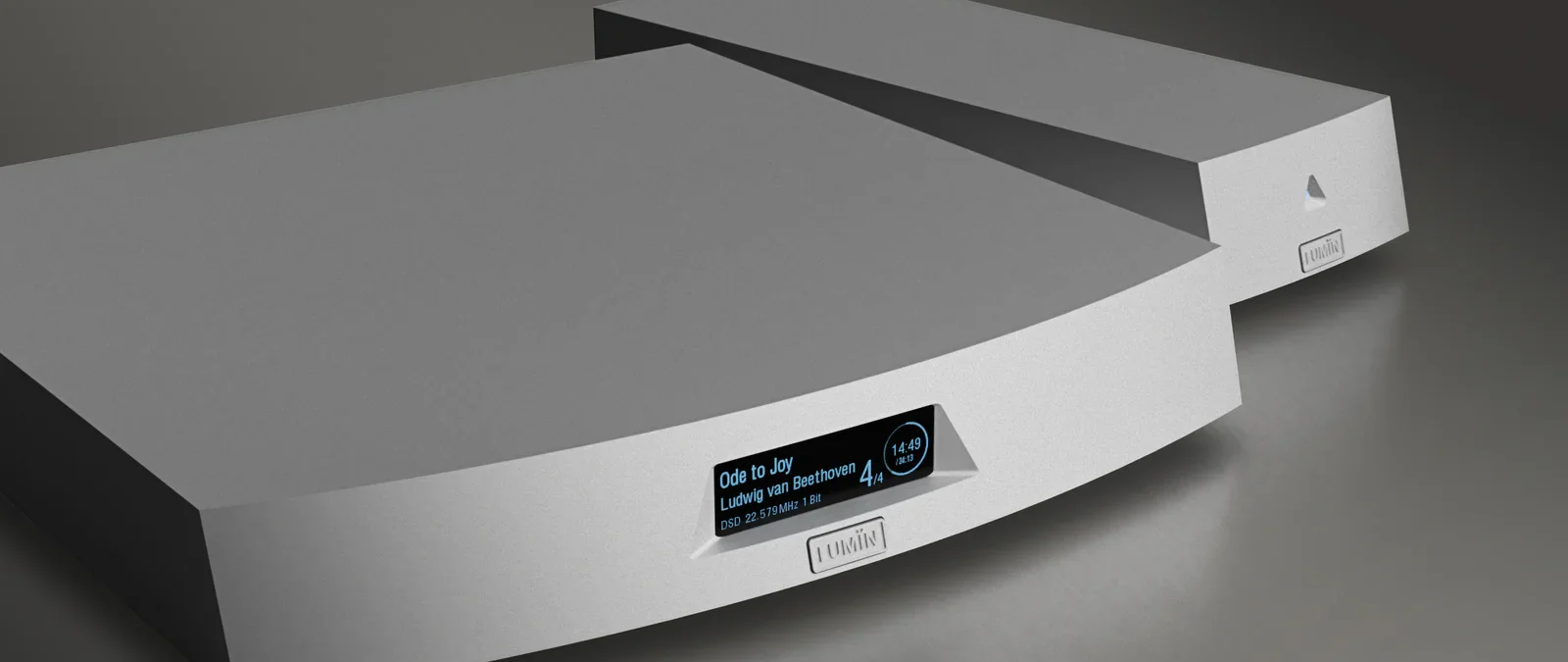

Lumin U2X Network Transport
11000,00 €
Lumin U2X is a reference-level network transport designed for high-end digital systems built around an external DAC.
With Lumin’s advanced streaming platform, precision clocking, fibre networking, low-noise power architecture and a wide range of digital outputs, U2X focuses entirely on delivering a clean and stable digital signal to your DAC.
Hi-Fi Market is an authorised Lumin dealer in Estonia.
Lumin U2X Network Transport is a reference-level digital source designed for listeners who already use a high-quality external DAC and want a dedicated network transport to match it. Unlike network players with built-in analogue outputs, U2X focuses entirely on digital signal delivery.
The U2X is built around Lumin’s mature streaming platform and is designed to provide a clean, stable and precisely timed digital output for high-performance DAC-based systems. It supports high-resolution network playback, streaming services and local music libraries, while allowing the DAC to remain responsible for digital-to-analogue conversion.
For system integration, Lumin U2X offers a wide range of digital outputs, allowing it to work with many serious DACs in modern hi-fi systems. Fibre networking support can help provide electrical isolation from the home network, while careful clocking and low-noise design support stable digital playback.
U2X is especially suitable for systems where the DAC is already a major part of the system’s sound and long-term upgrade path. It allows the streaming transport and DAC to remain separate, giving the listener more flexibility when upgrading the digital front end over time.
For best results, the Lumin U2X can be matched with a high-quality DAC, carefully selected network audio components, power management and suitable digital and analogue cables. It is a natural choice for reference-level streaming systems where digital source quality matters.
Hi-Fi Market is an authorised Lumin dealer in Estonia. Contact us or visit our showroom in Tabasalu near Tallinn to discuss how the Lumin U2X can be integrated into your DAC-based hi-fi system.
U2X SPECIFICATION
-
DSD SUPPORT:
- Up to DSD512 22.5MHz, 1-bit
-
PCM SUPPORT:
- Up to 768kHz, 16–32-bit, Stereo
-
UPSAMPLING RATES & BIT DEPTHS:
- DSD256 upsampling option for all files
- PCM 384kHz upsampling option for all files
-

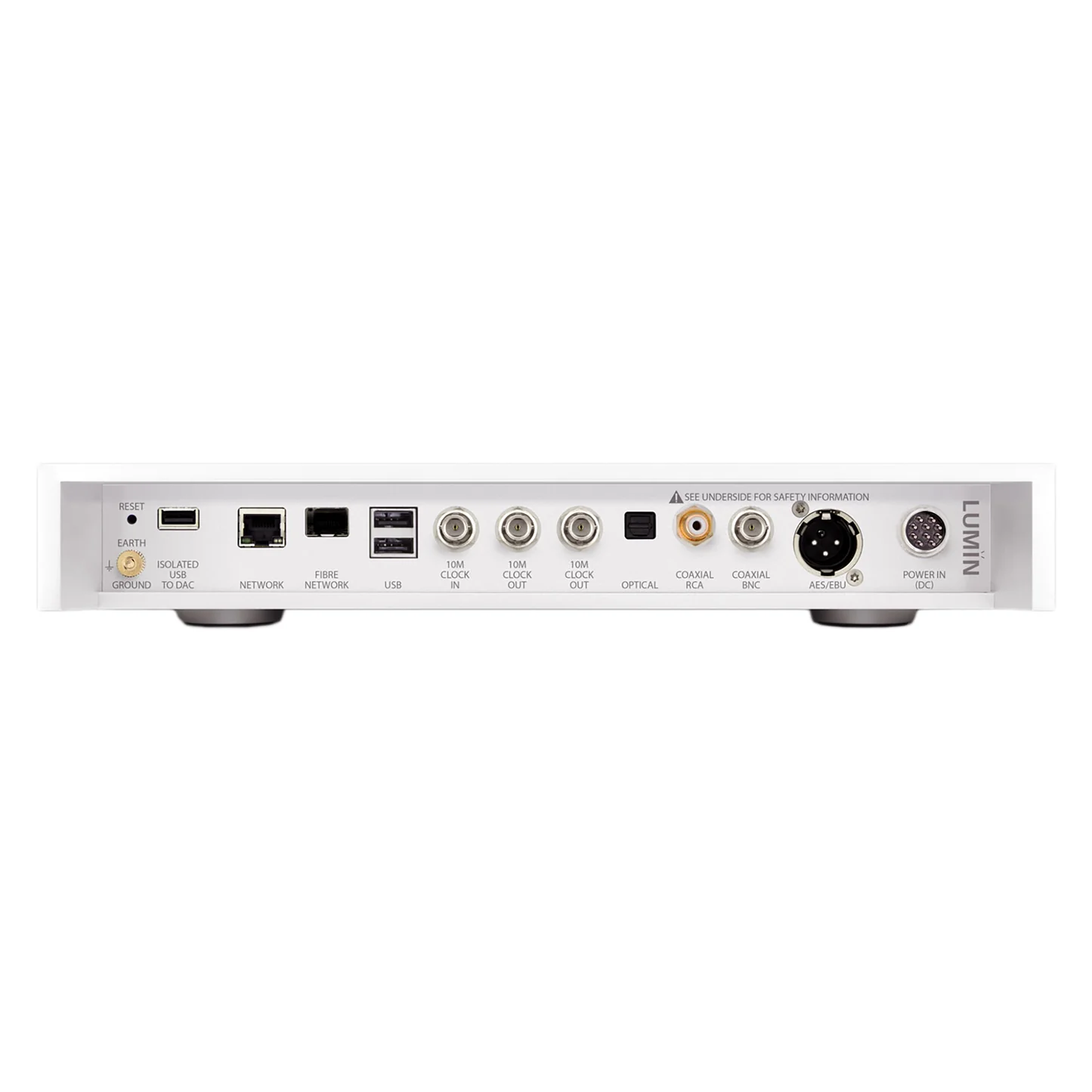

DIGITAL OUTPUT STAGE:
-
ISOLATED USB:
- Native DSD512 support
- PCM 44.1–768kHz, 16–32-bit, Stereo
-
OPTICAL, COAXIAL RCA, COAXIAL BNC & AES/EBU:
- PCM 44.1kHz–192kHz, 16–24-bit
- DSD (DoP, DSD over PCM) 2.8MHz, 1-bit
-
-
10M CLOCK I/O:
-
BNC INPUT:
- 50 Ohms on BNC
-
BNC OUTPUTS:
- 50 Ohms on BNC
-
-
OPTICAL NETWORK:
- Industry-standard SFP
- 1000Base-T Gigabit Ethernet
- Adapter may be needed for your particular switch/cables
- Use simultaneously with RJ45 (e.g. connect one to router and one to LUMIN L1 or NAS)
-
POWER SUPPLY:
- External solid billet cnc dual-toroidal
- Separate digital & analogue circuitry
- Low-noise linear regulator
- 9-pin Output Connector
-
PHYSICAL:
-
FINISH:
- Black anodised aluminium (with matching PSU)
- Raw anodised aluminium (with matching PSU)
LUMIN (SOLID ALUMINIUM CHASSIS):
- 350mm (W), 345mm (D), 60mm (H), 8kg
-
PSU (SOLID ALUMINIUM CHASSIS):
- 106mm (W), 334mm (D), 60mm (H), 4kg
-
Recommended categories for building a Lumin-based system: - Network Players & Streamers - Music Servers - Network Audio - DACs - Preamplifiers - Power Amplifiers - Audio Cables To discuss the right Lumin solution for your system, contact us. We can help you choose between a network player, digital transport, music server or network hub based on your existing components, listening habits and future upgrade plans.
