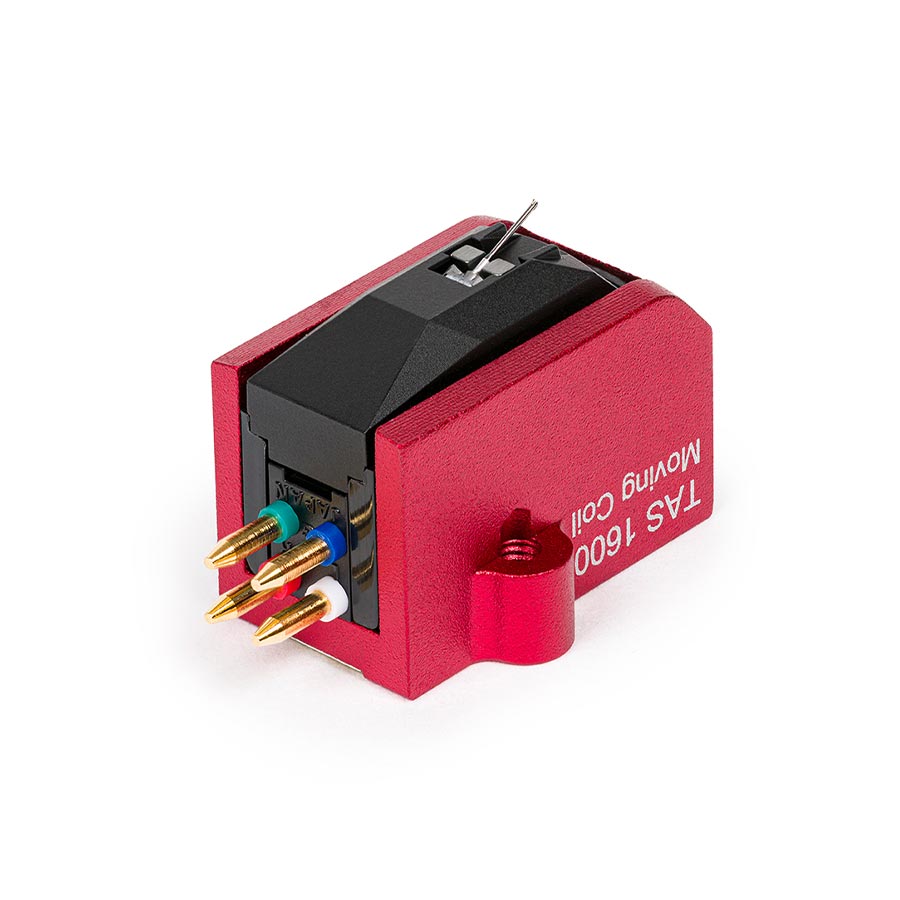

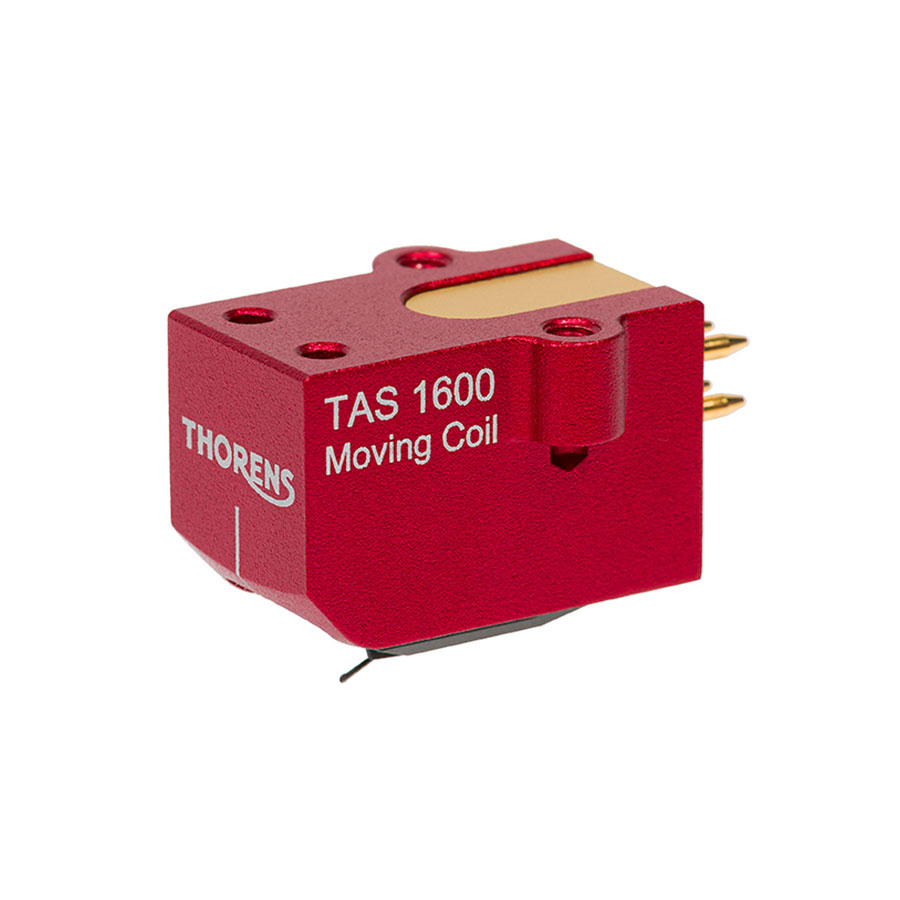

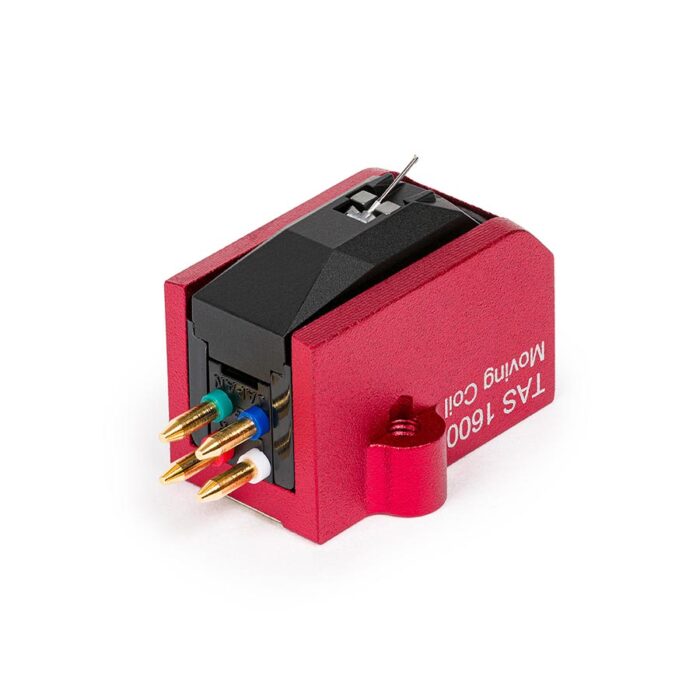

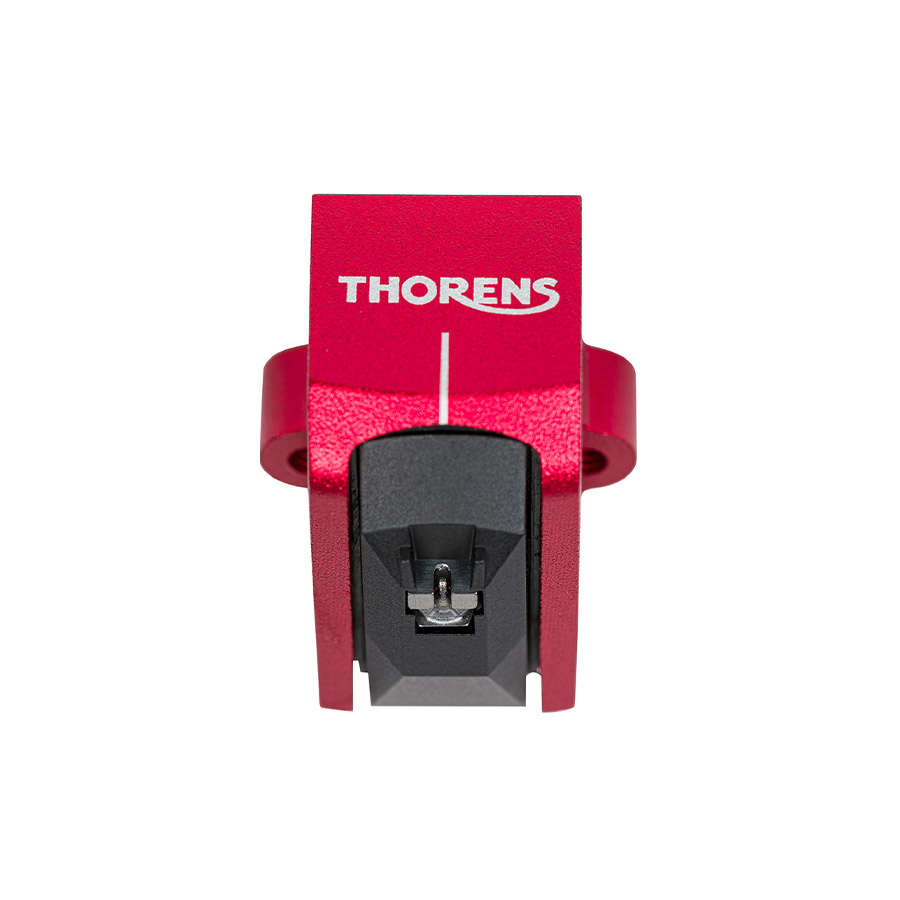

Thorens TAS 1600 Moving Coil Cartridge

1199,00

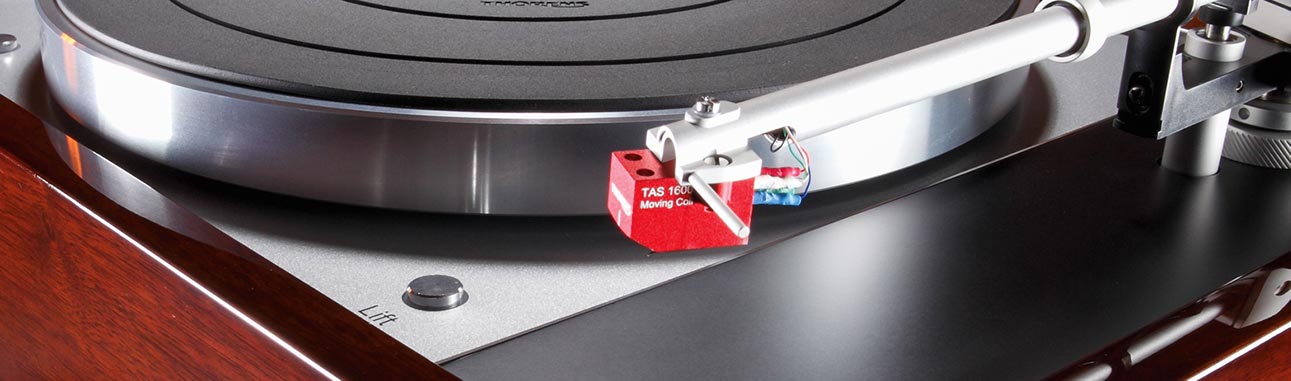

The newly developed Thorens TAS 1600 cartridge is a Japanese made low output MC that was specially developed for the Thorens TD 1600 and TD 1601. With an output voltage of 0.4 millivolts at 5.5 cm/s, it delivers sufficient levels to harmonize with common phono preamplifiers. With an internal resistance of 12 ohms, it feels in good hands at a terminating resistor of > 100 ohms. At the end of a massive boron cantilever sits a fine diamond with a line-contact cut, which elicits every musical fineness of the record groove.

Description

Overview

Thorens TAS 1600 is a newly developed Japanese made low output MC phono cartridge that is specially developed for the Thorens TD 1600 and TD 1601 turntables. The TAS 1600 output voltage is 0.4 millivolts at 5.5 cm/s, which is a sufficient level to harmonize with most common phono preamplifiers. The TAS 1600 cartridge has a line contact, diamond stylus that’s attached to a boron cantilever. This design delivers every last musical note captured from the record groove. It has an internal resistance of 12 ohms, which feels in good hands at a terminating resistor of > 100 ohms.



SPECIFICATIONS
Model: TAS 1600
Mounting: 1/2" centers / Threaded inserts
Frequency Response: 20 - 50k Hz
Body: Aluminum
Channel Separation: 28 dB ( 1k Hz )
Output Channel Balance: 0.5 dB ( 1k Hz )
Output Voltage: 0.4 mV ( 1k Hz, 5 cm / sec )
Vertical Tracking Angle: 20 degrees
Tracking force, recommended: 1.8 to 2.2 gram ( standard 2.0 gram )
Stylus Shape: Special Line Contact
Stylus Size: 1.5 x 0.28 mil
Stylus Construction: Nude rectangular shank
Coil Impedance: 12 Ohms ( 1k Hz )
Coil Inductance: 25 μH ( 1k Hz )
DC Resistance: 12 Ohms
Static Compliance: 22 x 10 - 6 cm / dyne
Dynamic Compliance: 18 x 10 - 6 cm / dyne ( 100 Hz )
Terminal Pins: Brass
Wire Used for Coil: COCCP ( Copper by Ohno Continuous Casting Process )
Recommended Load Impedance: minimum 100 Ohms
Cartridge Weight: 8.2 grams
About Thorens
Thorens Reference and Prestige In 1980, Thorens decided, regardless of cost, to develop and market an ultimative turntable. The result was called Thorens Reference, weighed 90 kg, was designed for up to three tonearms and had a tunable sub-chassis! Externally, the Reference looked like any kind of mass drive, in which simply a heavy platter is placed on an even heavier framework and smoothness is generated solely by mass. But the Reference was different, the design was much smarter. Simply, that it had a sub-chassis and the platter weighed only 6 kg, makes it unique. The model was made on request in an official edition of 100 pieces, customers could choose individual color combinations and order individual tonearms. In 1983, for the 100th anniversary of the company, another large model entered the market: the Thorens Prestige. Qualitatively equivalent to the Reference, with sub-chassis and electrical lifts for two tonearms. A super drive also by today's standards and unique because of its sub-chassis.
