Aurender A30 Signature Analog Music Server

Aurender A30 Signature Analog Music Server

The Aurender A30 is the flagship model in Aurender’s range of analog music servers, combining a high-end network player, music server, digital-to-analog converter, headphone amplifier, CD ripper and comprehensive music library management system in a single reference-grade component.

Designed for listeners who want the convenience of an integrated digital source without compromising sound quality, the A30 can play music from streaming services, its internal 10TB hard drive, network storage and connected USB drives. Its variable balanced XLR and unbalanced RCA outputs allow it to be connected to a preamplifier or integrated amplifier, while the lossless DAC-level volume control also enables direct connection to a power amplifier.

Dual-Mono AKM Digital-to-Analog Conversion

At the heart of the A30 is a dual-mono DAC architecture based on two AKM AK4497 converter chips. Separate conversion channels for the left and right signals provide excellent channel separation, low noise and precise reproduction of musical detail.

The built-in DAC supports PCM playback up to 32-bit/768kHz and native DSD up to DSD512. MQA Full Decoder functionality is also integrated for compatible MQA files and streams.

Linear Power Supply and Precision Clocking

The A30 uses a fully linear power supply with four separate toroidal transformers dedicated to the server section, left and right DAC channels, headphone amplifier and FPGA circuitry. Extensive internal shielding and independent power sections help prevent electrical noise from reaching the sensitive audio circuits.

An FPGA-based precision clock system with an ultra-low-jitter clock generator controls the timing of digital audio data. The A30 also incorporates a supercapacitor-based uninterruptible power supply that allows the system to shut down safely if mains power is unexpectedly interrupted.

10TB Music Storage and Caching Playback

A factory-installed 10TB hard drive provides substantial storage capacity for a large local music collection. During playback, music data is transferred to the dedicated 480GB NVMe solid-state drive, reducing mechanical and electrical activity from the storage drive and creating a stable environment for audio playback.

Music stored on a NAS, external USB drive or USB memory device can also be played or imported using the rear-panel USB 3.0 data ports and network connection.

Integrated CD Ripping and Library Management

The built-in slot-loading optical drive allows CDs to be imported directly to the internal music library in WAV, FLAC or AIFF format. Error detection and correction are used during the ripping process to create accurate digital copies of the original disc.

The dedicated Aurender A30 Manager application provides tools for configuring CD ripping, editing metadata, finding duplicate files and copying, moving or deleting music. The A30 can also be used with the optional Acronova Nimbie AutoLoader for automated batch ripping of large CD collections.

Analog Outputs and Digital Connectivity

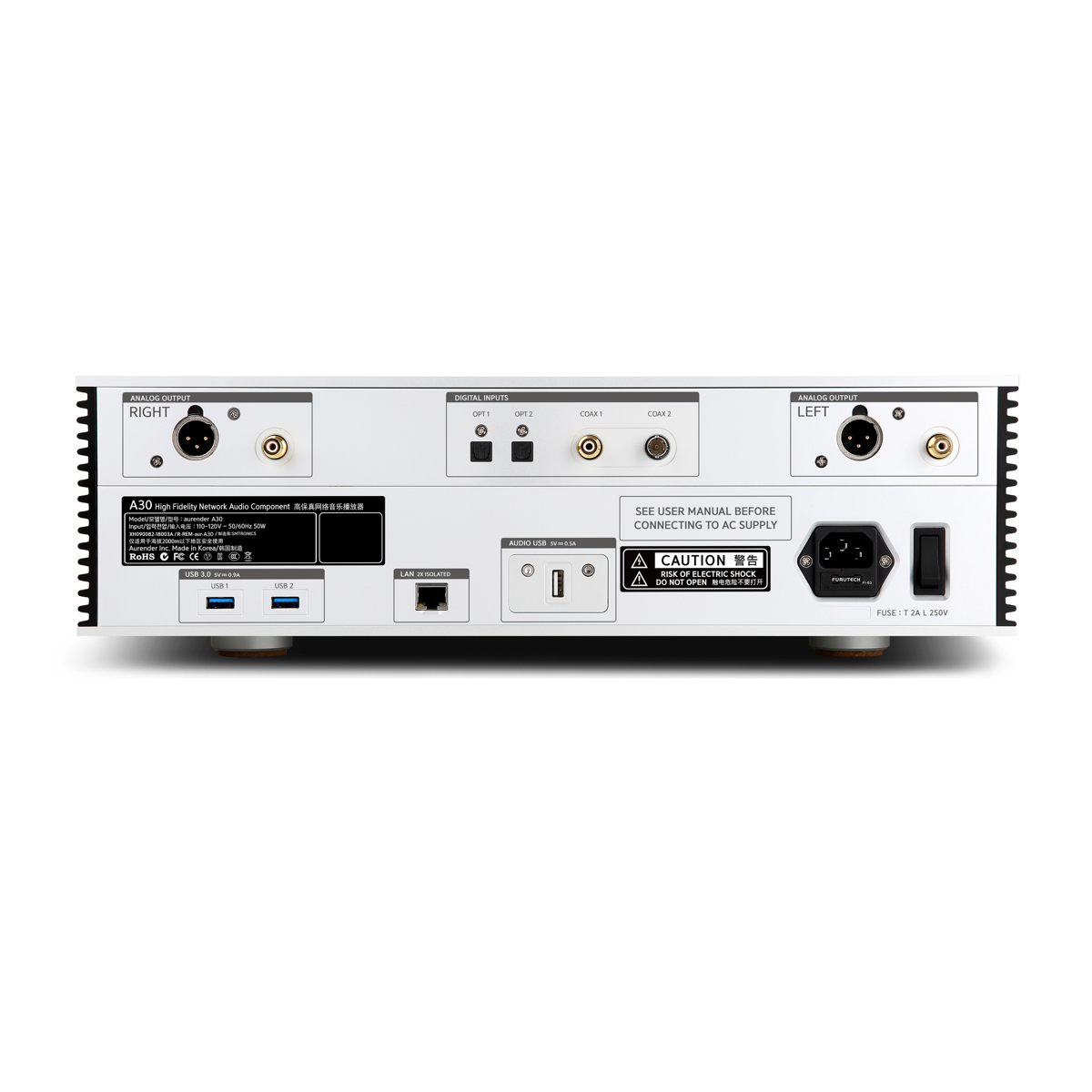

The A30 provides balanced XLR and unbalanced RCA analog outputs with either fixed or variable output level. External digital sources can use the RCA coaxial, BNC coaxial and two optical Toslink inputs, allowing the A30’s internal DAC to serve as the digital centre of a complete audio system.

A dedicated and electrically isolated USB Audio output is included for connection to an external DAC. The A30 can also upsample non-DSD audio to a maximum of 705.6kHz or 768kHz, while the upsampling function can be disabled for native-rate playback.

Dedicated Headphone Amplifier

A separate headphone amplification section supports a wide range of headphones through a 1/4-inch unbalanced output, a 4-pin balanced XLR output and a 4.4mm balanced output. Its independent power supply keeps the headphone section isolated from the main DAC and server circuitry.

Aurender Conductor and Streaming Services

Playback and library navigation are controlled through the Aurender Conductor application for iPad, iPhone, Android phones and Android tablets. The integrated platform provides access to locally stored music, Internet Radio and supported streaming services including TIDAL and Qobuz, together with Spotify Connect and AirPlay compatibility.

The Aurender A30 is also Roon Ready, allowing it to operate as a certified audio endpoint within a compatible Roon system.

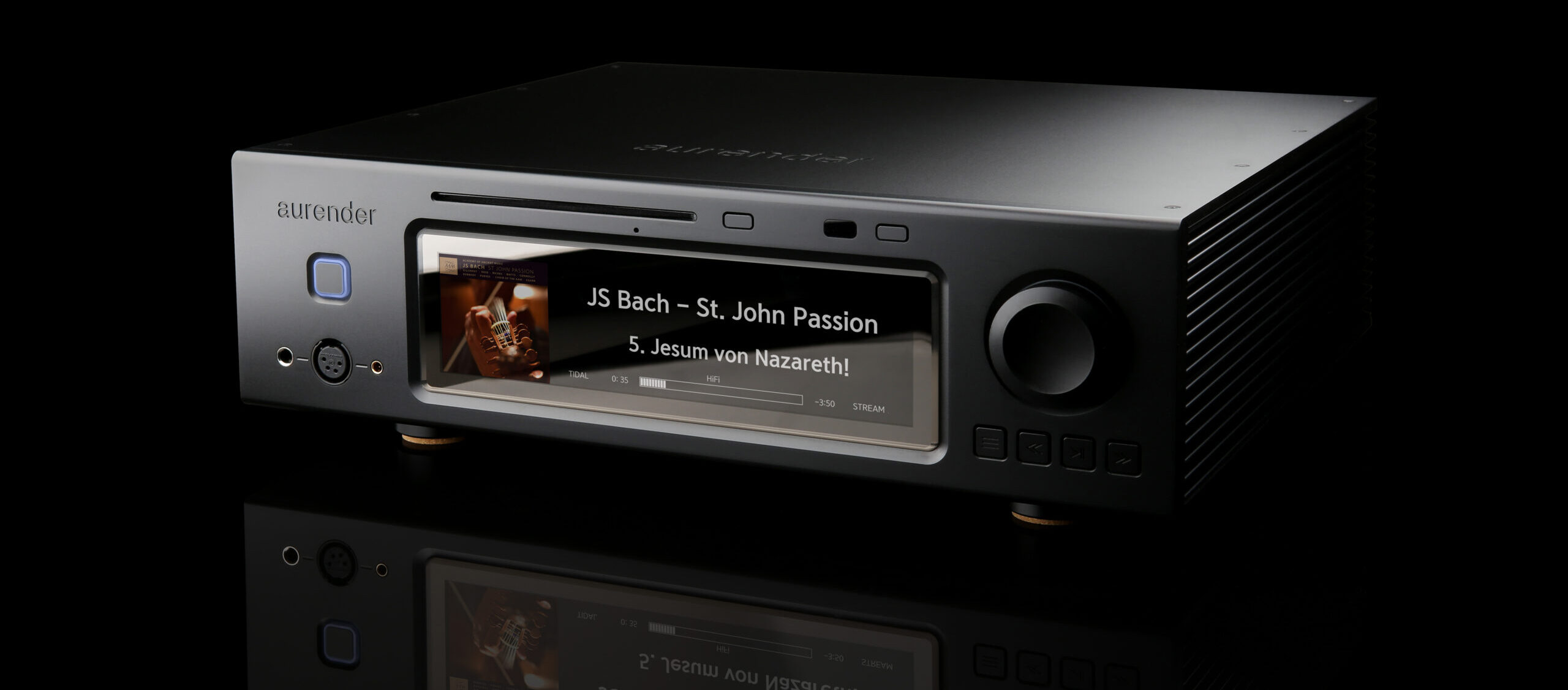

Wide Colour Display and Machined Aluminium Chassis

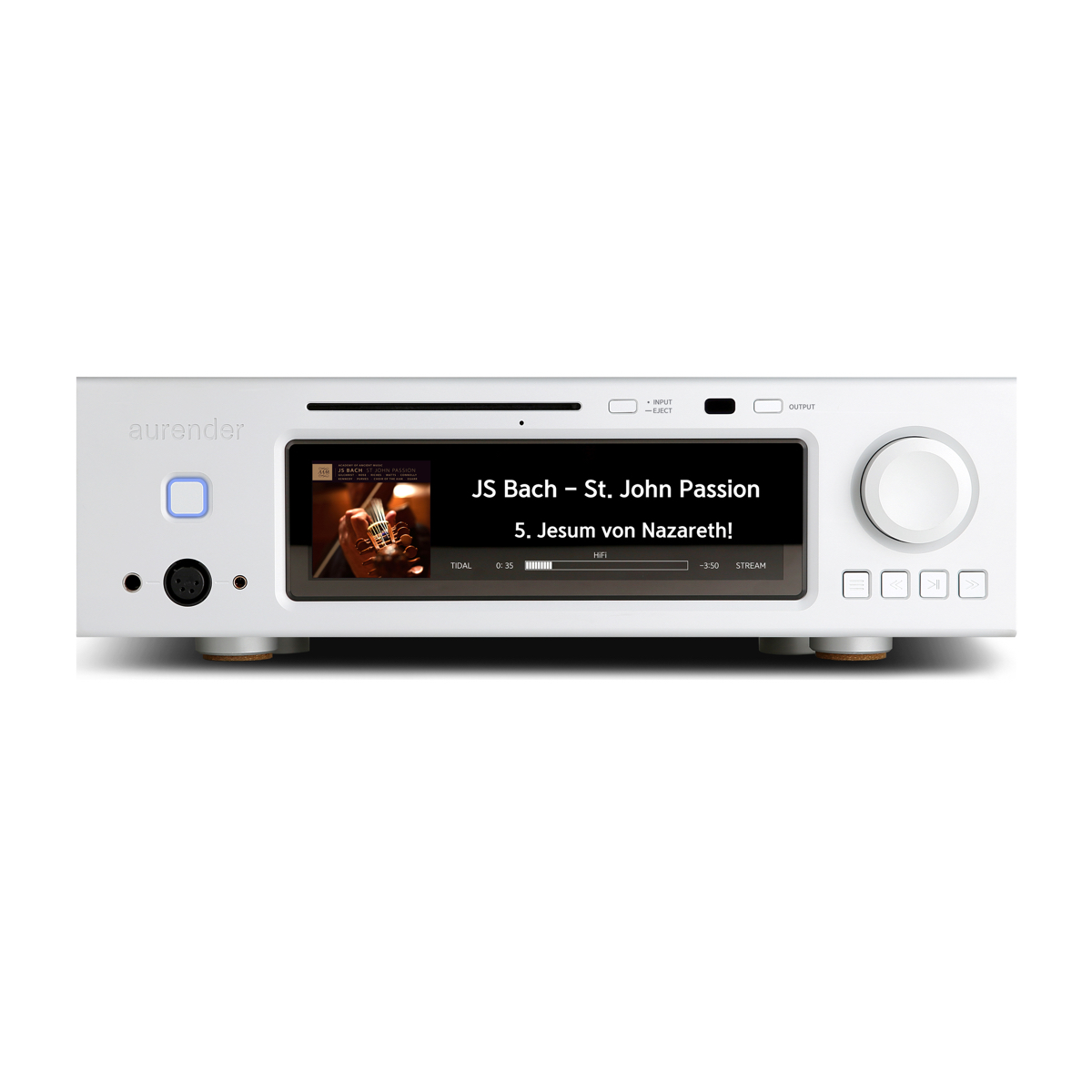

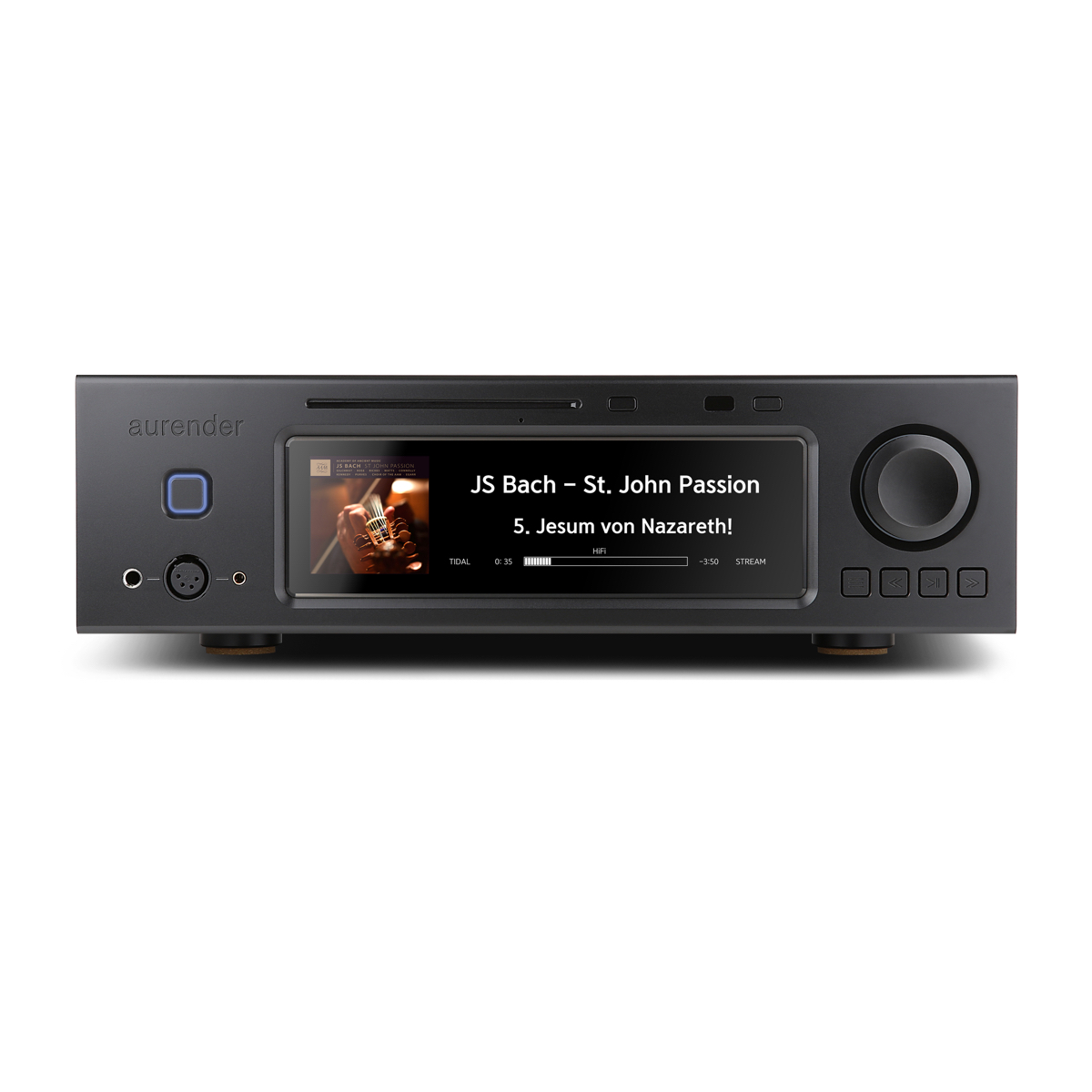

The front panel features an 8.8-inch wide IPS colour display that can show album artwork, artist information and track details. The substantial machined aluminium chassis provides a rigid, well-shielded enclosure for the server, power supply and audio circuitry.

Available in black and silver finishes, the Aurender A30 is designed as a complete high-end digital source for systems requiring integrated streaming, local music storage, CD archiving, analog playback and dedicated headphone listening.
