NAD C 389 Integrated Amplifier with Built-in DAC
1599,00 €
The NAD C 389 HybridDigital DAC amplifier can serve as the cornerstone of a high-performance audio system now – and for decades to come. Employing NAD’s proven HybridDigital UcD amplifier design and the same ESS Sabre DAC used in NAD’s acclaimed M33 BluOS streaming amplifier, the C 389 will deliver thrilling dynamics and exquisite detail from all your sources.
Power and Performance
For over 50 years, the NAD brand has been synonymous with performance and value, and the C 389 HybridDigital DAC Amplifier continues that tradition. Its output stage is based on a customized version of NAD’s efficient HybridDigital UcD design, with multiple UcD amplifier modules in balanced bridged configuration and an innovative switch-mode power supply that provides ample reserves of current on demand. The C 389 can deliver a staggering 130W per channel continuously, with virtually unmeasurable distortion and noise through the audio band, and up to 350W per channel of instantaneous power, for effortless reproduction of musical transients.
The digital section features the same 32-bit/384kHz ESS Technology Sabre DAC chip used in NAD’s award-winning Masters M33 amplifier. Renowned for its exceptionally wide dynamic range, ultra-low noise and distortion, and near-zero levels of clock jitter, the ESS Sabre 9028 DAC enables the C 389 to deliver astonishing clarity and near-holographic imaging on all sources.
Future Friendly
In 2006, NAD introduced Modular Design Construction technology, which lets users add new features by inserting an expansion module into an MDC-capable component. In 2021, NADintroduced MDC2, a next-generation future-proofing platform that enables two-way communications between the expansion module and host component.
The C 389 has two MDC2 expansion slots, so that it can stay current with new developments in A/V technology. NAD’s first MDC2 module is the MDC2 BluOS-D, which features BluOS high-res multi-room streaming and Dirac Live room correction.
The MDC2 BluOS-D connects to your home network via Wi-Fi or wired Ethernet. Using the BluOS Controller app on a smart device or personal computer, you can play music from your favourite streaming services and personal music library through the C 389. BluOS has integrated support for more than 20 services, including several that offer lossless and high-res audio, such as Amazon Music HD, Deezer, Idagio, Qobuz and Tidal. Like all BluOS-enabled components, the MDC2 BluOS-D has MQA decoding and rendering capability, for high-res streaming from Tidal. It also supports Apple AirPlay 2, Spotify Connect and Tidal Connect, as well as Amazon Alexa voice control. With the MDC2 BluOS-D installed, the C 389 can be part of a whole-home music system with as many as 64 zones.
By counteracting common acoustic problems like standing waves and room reflections, Dirac Live room correction transforms your listening experience. Connect the supplied microphone to the MDC BluOS-D’s USB port, and then run the free Dirac Live app on a smart device or personal computer. Dirac Live will play test tones through your speakers, analyze the results, then transfer compensation filters to the MDC BluOS-D. You’ll enjoy deeper, more textured bass; more precise imaging; greater midrange clarity; and more accurate tonal balance. Thanks to MDC2’s two-way architecture, the MDC2 BluOS-D delivers these benefits on all sources connected to the C 389.
| Amplifier Type: | Integrated Amplifier (Preamp/Power Amp Combo) |
| Channels: | 2.2 |
| Amplifier Class: | Class-D |
| Power Output per Channel: | 130 W at 8 Ohms / 20 Hz to 20 kHz / 0.02% THD (RMS) |
| Dynamic Power per Channel: | 210 W at 8 Ohms 300 W at 4 Ohms 350 W at 2 Ohms |
| Frequency Response: | 20 Hz to 20 kHz ±0.3 dB (8 Ohms, 4 Ohms) |
| THD: | < 0.02% (4 Ohms, 8 Ohms, Full Power, Both Channels Driven) |
| Channel Separation: | > 90 dB (1 kHz) > 75 dB (10 kHz) |
| Speaker Impedance: | 2 to 8 Ohms |
| Damping Factor: | > 150 (8 Ohms) |
| Auro 3D Support: | No |
| Supported File Formats: | AAC, AIFF, ALAC, FLAC, MP3, MQA, OGG, WAV, WMA, WMA-L |
| Supported Sample Rates: | Up to 192 kHz / 24-Bit |
| DAC: | 384 kHz / 32-Bit (ESS Sabre 9028) |

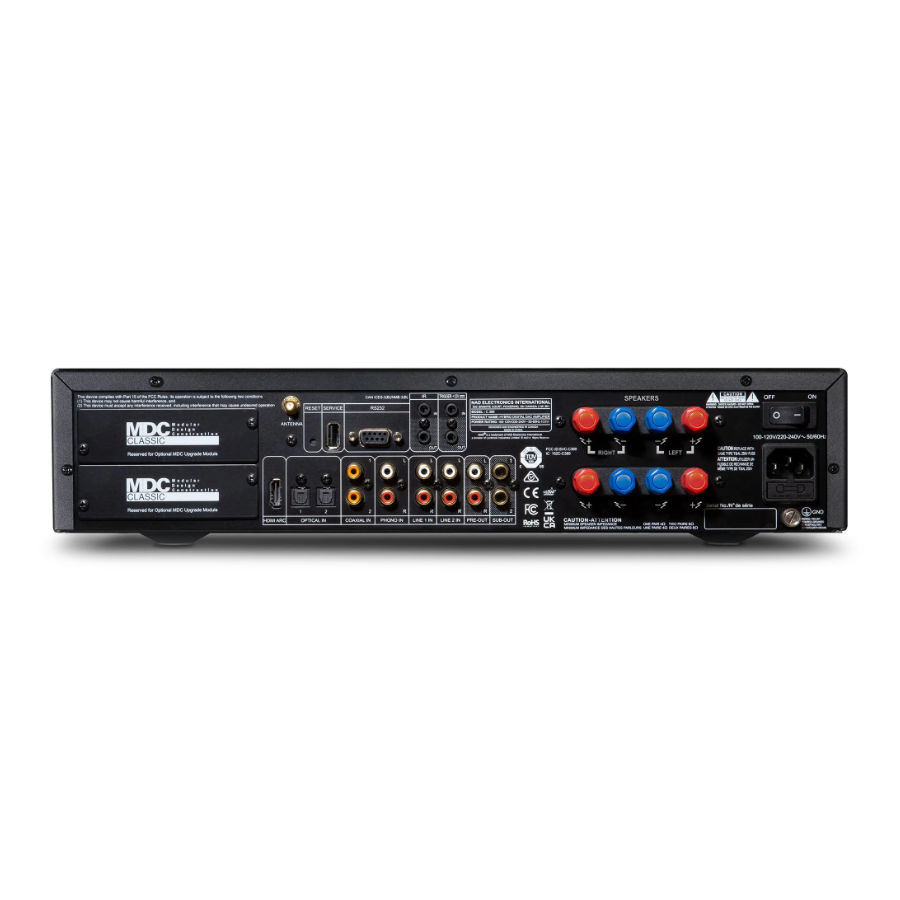

| Rear A/V Inputs: | 1x HDMI 2x Optical TOSLINK 2x Digital Coaxial 1x Stereo RCA (Phono MM) with Ground Screw 2x Stereo RCA 1x USB-A |
| Rear A/V Outputs: | 1x Stereo RCA Pre-Out 2x RCA Subwoofer Line-Out |
| Front I/O: | 1x 1/4" / 6.35 mm Headphone Output |
| Other Rear I/O: | 2x Bluetooth Coaxial F-Type Input 1x Wi-Fi Coaxial F-Type Input 1x USB-C (Service) Input 1x RJ45 (Ethernet) Input 1x USB-A (Service) Input/Output 1x DE-9 (RS-232C) Output 1x 1/8" / 3.5 mm (IR) Input 1x 1/8" / 3.5 mm (IR) Output 1x 1/8" / 3.5 mm (12 V Trigger) Input 1x 1/8" / 3.5 mm (12 V Trigger) Output |
| Speaker I/O: | 4x Binding Post Pair |
| HDCP Support: | Yes |
| Audio Return Channel (ARC): | eARC |
| HDMI CEC: | Yes |
| Media Card Slot: | No |
| A/B Speaker Selection: | Yes |
| Bi-Amp Capability: | No |
| Input Impedance: | Line: 56 Kilohms |
| Input Sensitivity: | Line: 65 mV |
| Max Input Level: | Line: > 4.6 Vrms |
| Signal to Noise Ratio: | Line: > 106 dB (A-Weighted / IHF-A) Phono: > 84 dB (A-Weighted) Amplifier Out: > 95 dB (1 W Output / 8 Ohms / A-Weighted) |
| Total Harmonic Distortion (THD): | Line to Speaker Out: < 0.002% (4 Ohms / 8 Ohms) |
| Channel Separation: | RCA to Speakers: > 90 dB (1 kHz) > 75 dB (10 kHz) |
| Wi-Fi: | Wi-Fi 5 (802.11ac) |
| Bluetooth: | Yes |
| Supported Audio Codecs: | aptX, aptX HD |
| Wireless Audio Protocols: | AirPlay 2 |
| DLNA Support: | No |
| External Control Support: | Control4, Crestron Command, ELAN, RTI, URC |
| Virtual Assistant: | Apple AirPlay, Works with Alexa, Works with Google Assistant, Siri |
| Mobile App Compatible: | Yes: Android & iOS App Name: BluOS Controller Functionality: Access Stored Files, Adjust Settings, Firmware Update, Remote Control, Setup |
| AC Input Power: | 100 to 240 VAC, 50 / 60 Hz |
| Power Consumption: | Network Standby: 0.6 W |
| Dimensions (W x H x D): | 17.1 x 3.9 x 15.4" / 435.0 x 100.0 x 390.0 mm |
| Weight: | 19.2 lb / 8.7 kg |
