Audio Physic Codex RQ напольные колонки

15600,00 €

Audio Physic Codex RQ — высококлассные 4-полосные напольные колонки серии Reference Line, сочетающие мощное воспроизведение низких частот с исключительной гибкостью размещения. Новое поколение использует технологию диффузоров RECOTec в ВЧ-динамике HHCT V, СЧ-динамике HHCM V SL и 7-дюймовом НЧ/СЧ-динамике, а система Q-SET позволяет настраивать бас как НЧ/СЧ-динамика, так и скрытого внутри корпуса 11-дюймового НЧ-динамика.

  • 4-полосные напольные колонки серии Reference Line
  • Технология диффузоров RECOTec в ВЧ-, СЧ- и НЧ/СЧ-динамиках
  • ВЧ-динамик HHCT V пятого поколения диаметром 39 мм
  • СЧ-динамик HHCM V SL пятого поколения диаметром 150 мм без центрирующей шайбы
  • 180-мм / 7-дюймовый НЧ/СЧ-динамик RECOTec с технологиями Double Surround и Q-SET
  • 280-мм / 11-дюймовый внутренний НЧ-динамик с алюминиевым диффузором и системой Q-SET
  • Трёхступенчатая настройка баса Q-SET для адаптации к помещению и расположению колонок
  • Частотный диапазон 28 Гц–40 кГц
  • Чувствительность 89 дБ и номинальное сопротивление 4 Ом
  • Рекомендуемая мощность усилителя 40–250 Вт
  • Сэндвич-конструкция корпуса с элементами Ceramic Foam и сотовыми внутренними структурами
  • Виброизолированный терминал VCT с разъёмами WBT nextgen®
  • Стандартные отделки: Glass Black, Glass White и Glass Anthracite
Описание

Audio Physic Codex RQ Floorstanding Speakers

Audio Physic Codex RQ is the latest generation of the acclaimed Codex floorstanding loudspeaker and represents a substantial technological update to one of the most distinctive models in the Reference Line. Its 4-way architecture combines a slim front baffle with a powerful concealed internal woofer, allowing the Codex RQ to deliver deep and authoritative bass without the visual bulk normally associated with a loudspeaker of this performance level.

The new RQ generation introduces two major developments: Audio Physic’s RECOTec diaphragm technology and Q-SET room-adaptive bass control. Together, they improve resolution, transient precision and tonal naturalness while making the loudspeaker considerably easier to integrate into real listening rooms.

RECOTec Driver Technology

The tweeter, midrange driver and front-mounted midwoofer now use Audio Physic’s RECOTec diaphragm material. RECOTec consists of a carbon-fibre structure embedded in a high-purity polypropylene matrix, combining high rigidity with excellent internal damping.

The material is designed to respond quickly and precisely to musical signals while suppressing unwanted resonances. The result is greater transparency, finer low-level resolution and a natural tonal balance across a wide part of the audible spectrum.

Fifth-Generation HHCT V Tweeter

High frequencies are reproduced by the 39 mm HHCT V Hyper Holographic Cone Tweeter. This fifth-generation design uses the new RECOTec diaphragm to combine excellent transient response with low resonance and high internal damping.

The result is a refined and highly detailed treble presentation that preserves delicate overtones, spatial information and the natural air of a recording without exaggeration.

HHCM V SL Spiderless Midrange Driver

The 150 mm HHCM V SL midrange driver also uses RECOTec technology. Its special surround construction eliminates the conventional centering spider, creating a less obstructed airflow path behind the diaphragm and reducing compression effects.

This allows voices and instruments to be reproduced with exceptional openness, articulation and dynamic freedom, particularly through the critical midrange region.

7-Inch RECOTec Midwoofer

A 180 mm / 7-inch midwoofer is mounted on the front baffle and operates above approximately 100 Hz. It combines a RECOTec diaphragm with Audio Physic’s Double Surround construction and Q-SET technology.

The driver provides fast, controlled upper-bass reproduction and creates a seamless transition between the concealed low-frequency woofer and the dedicated midrange driver.

Concealed 11-Inch Internal Woofer

The deepest frequencies are reproduced by a powerful 280 mm / 11-inch long-throw aluminium-cone woofer installed inside the cabinet in its own optimally tuned chamber.

This internal woofer gives the Codex RQ the authority and extension of a much larger loudspeaker while allowing the external cabinet to retain its elegant proportions and narrow front profile.

Q-SET Bass Adjustment

Both the front-mounted midwoofer and the internal woofer use dual voice coils and are designed to work with Audio Physic’s Q-SET bass-adjustment system.

Rear-panel switches provide three levels of adjustment, allowing the low-frequency response to be tailored to the loudspeaker’s position in the room. This is especially useful when the Codex RQ is placed closer to a rear wall or corner, where room reinforcement would otherwise increase bass energy.

Q-SET performs this adjustment without significantly changing the impedance curve seen by the amplifier, allowing the loudspeaker to retain consistent electrical behaviour across the available settings.

Exceptional Placement Flexibility

The combination of the concealed internal woofer, dedicated low-frequency chamber and Q-SET system gives the Codex RQ unusual flexibility for a loudspeaker capable of reaching down to 28 Hz.

This makes it particularly attractive for high-performance systems in real living spaces where deep bass is required but ideal free-standing loudspeaker placement is not always possible.

Rigid Sandwich Cabinet Construction

The Codex RQ uses an extensively braced cabinet structure with open-cell Ceramic Foam elements and Audio Physic’s Sandwich Cabinet Construction. Ceramic Foam is exceptionally rigid while consisting largely of air, allowing it to reinforce the enclosure without significantly reducing the working volume available to the drivers.

Honeycomb Sandwich Board is also used to provide high rigidity with low mass and reduced susceptibility to structural resonance. A permanently elastic layer between cabinet sections further suppresses unwanted vibration and prevents the enclosure from contributing its own sonic character.

Mechanically Decoupled Drivers and Crossovers

The individual drivers are mechanically isolated from the cabinet and operate in dedicated internal chambers, reducing the transmission of micro-vibrations and minimising interactions through the internal air volume.

The crossover network is distributed across several sections and positioned close to the relevant drivers. Short signal paths and carefully selected components help preserve signal integrity throughout the loudspeaker.

Vibration Control Terminal

The rear connection panel is mechanically decoupled from the enclosure using Audio Physic’s Vibration Control Terminal concept. High-quality WBT nextgen® binding posts provide the electrical connection while reducing the influence of structural vibration on the signal path.

Single-wiring is standard. A bi-wiring / bi-amping terminal can be ordered as an option.

Contemporary Glass Finishes

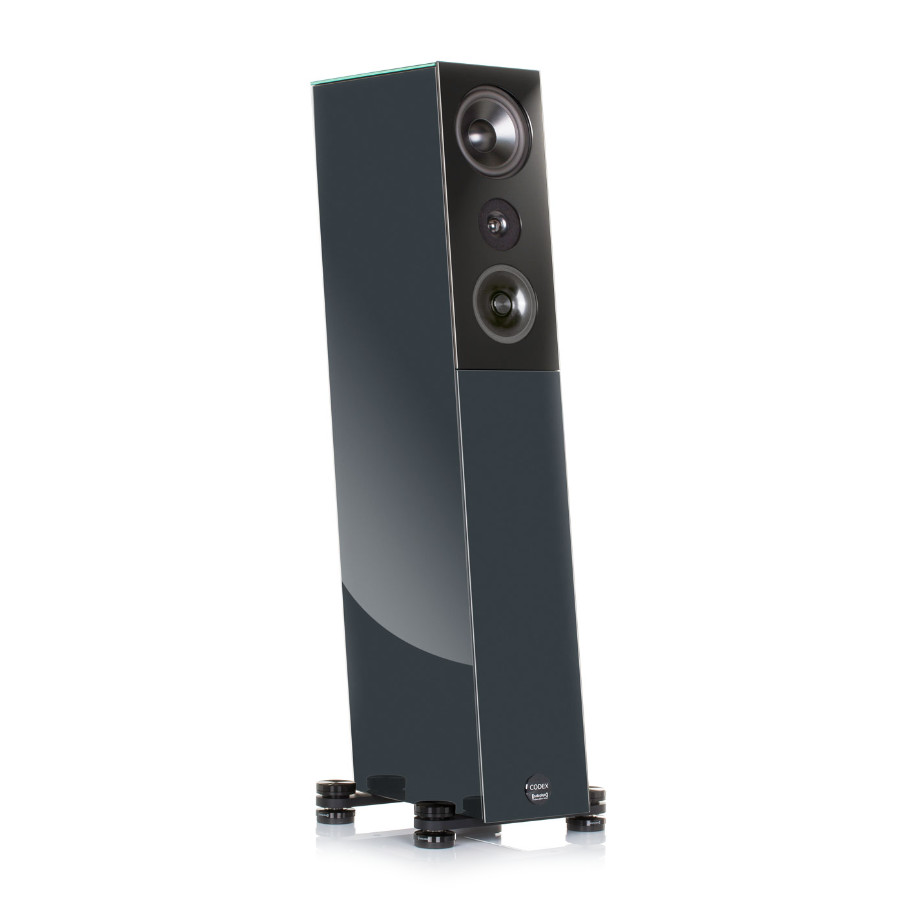

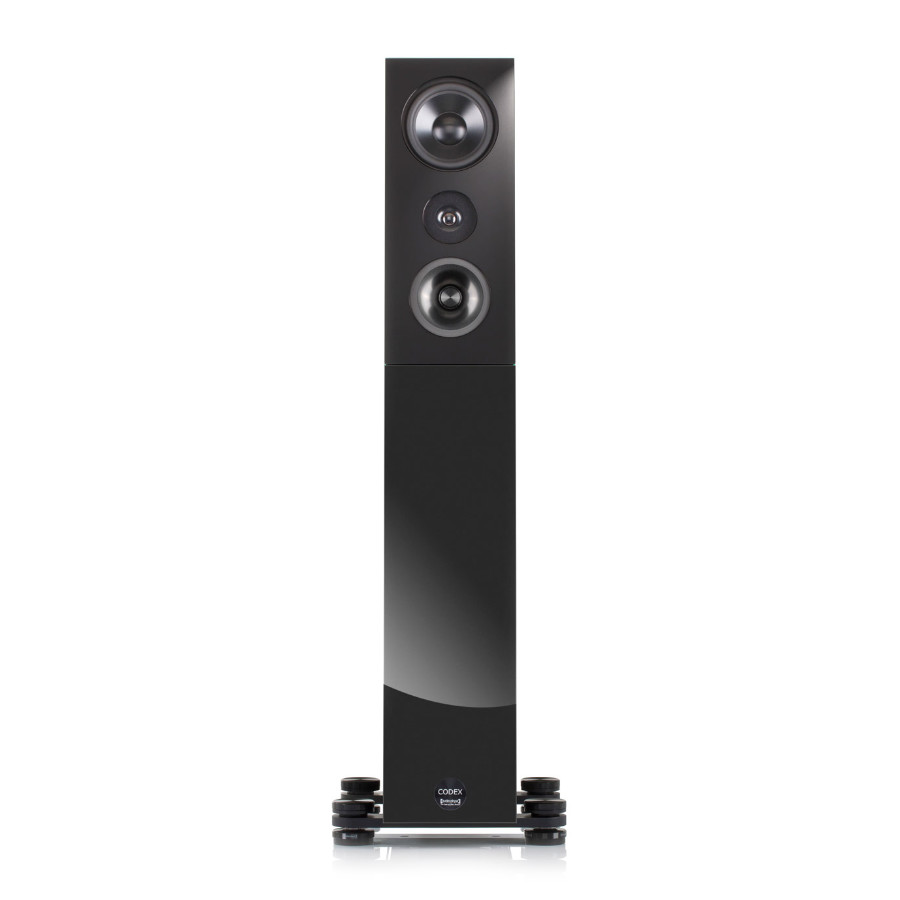

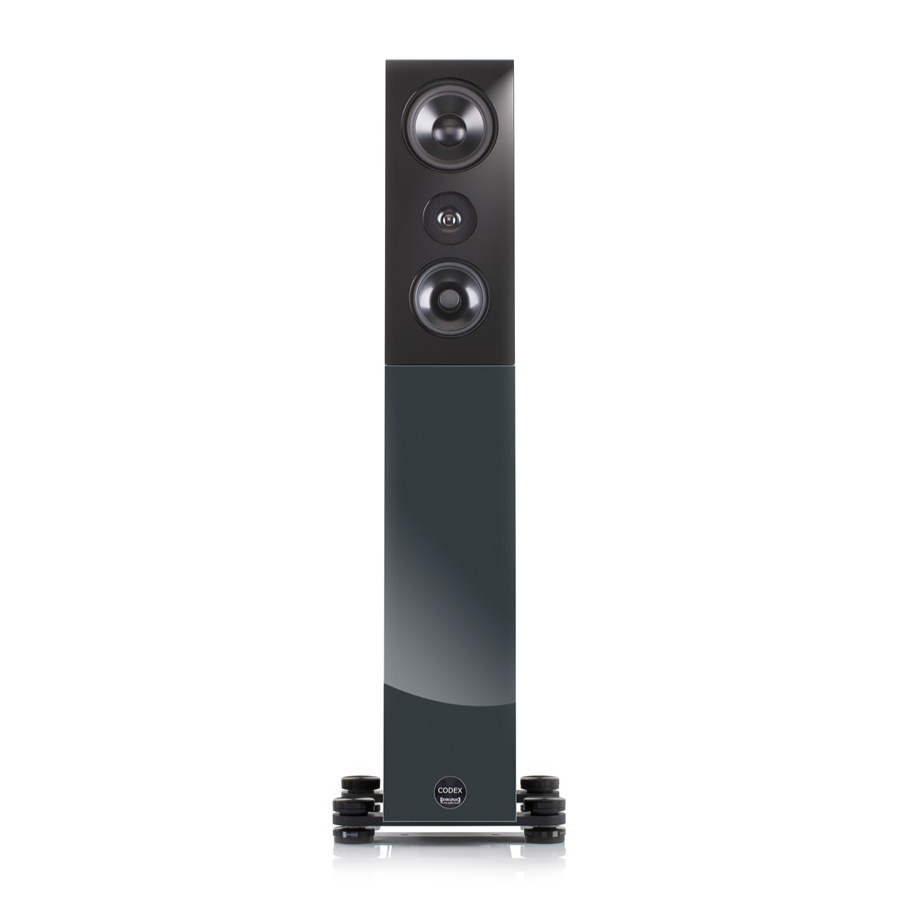

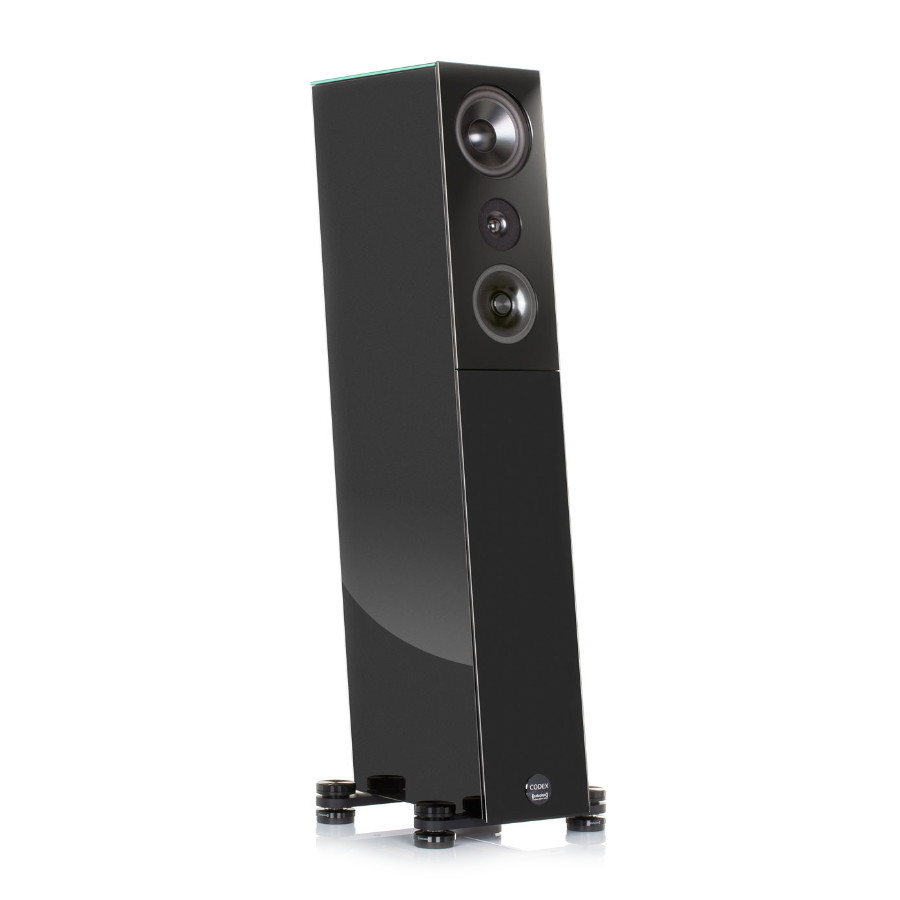

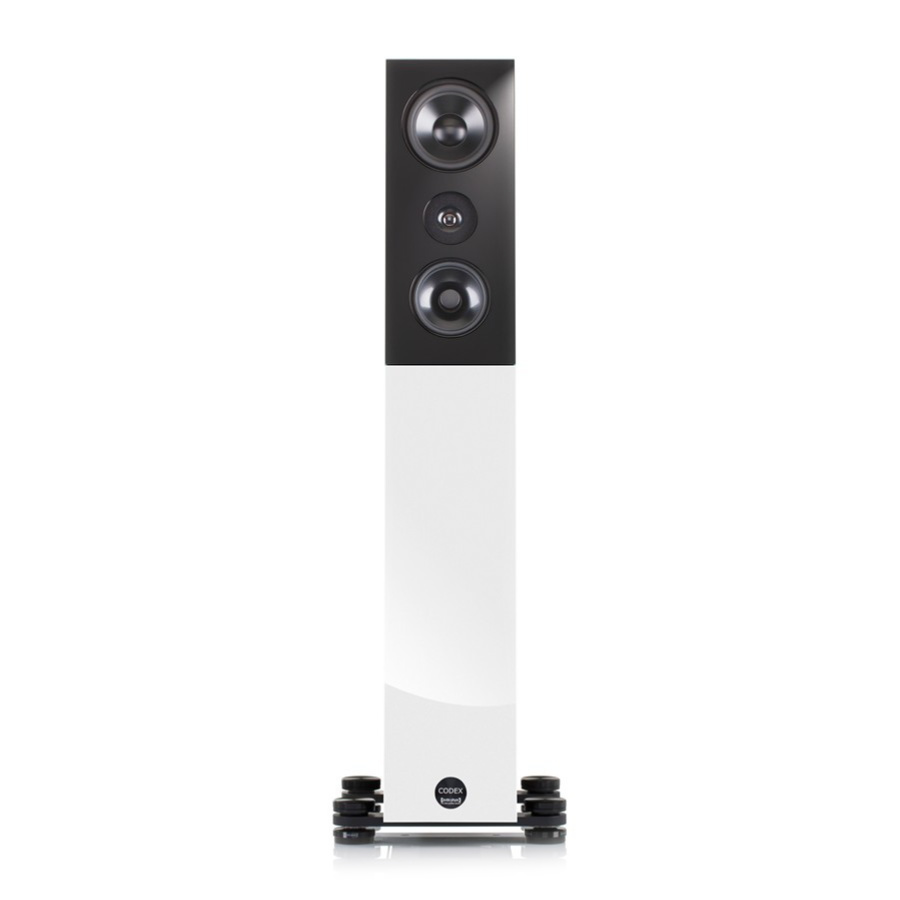

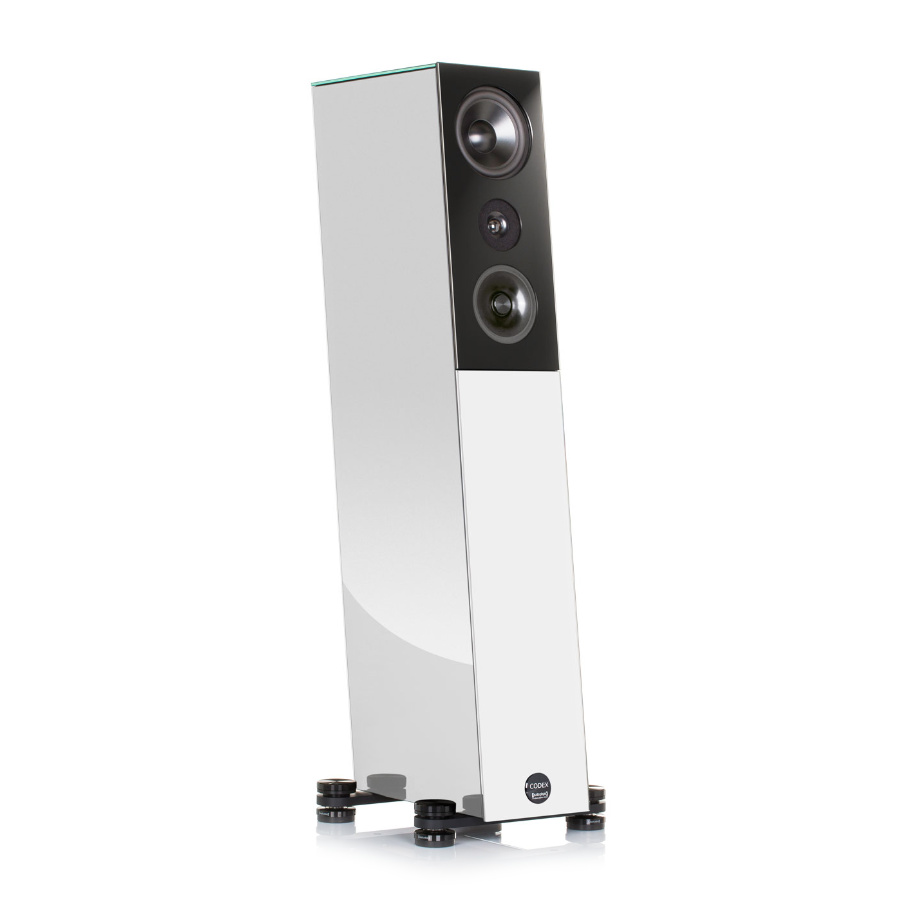

The standard Codex RQ range is available in Glass Black, Glass White and Glass Anthracite. The high-mass glass panels are not purely decorative: they also contribute to the damping behaviour of the sandwich cabinet structure.

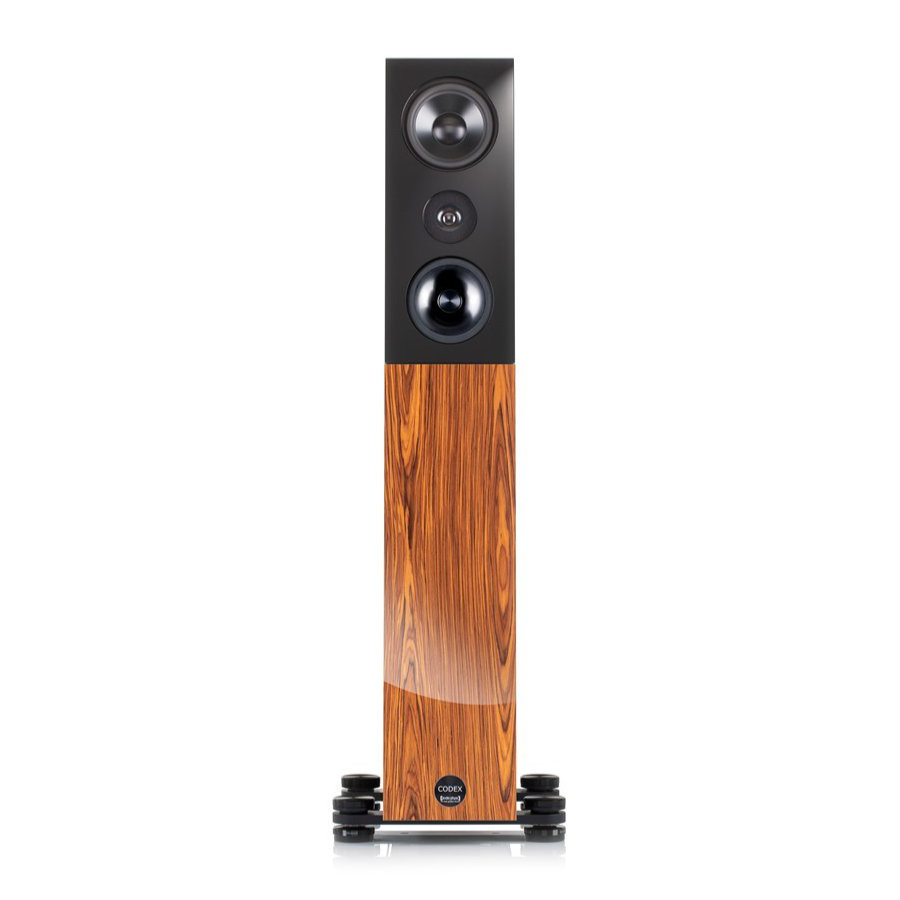

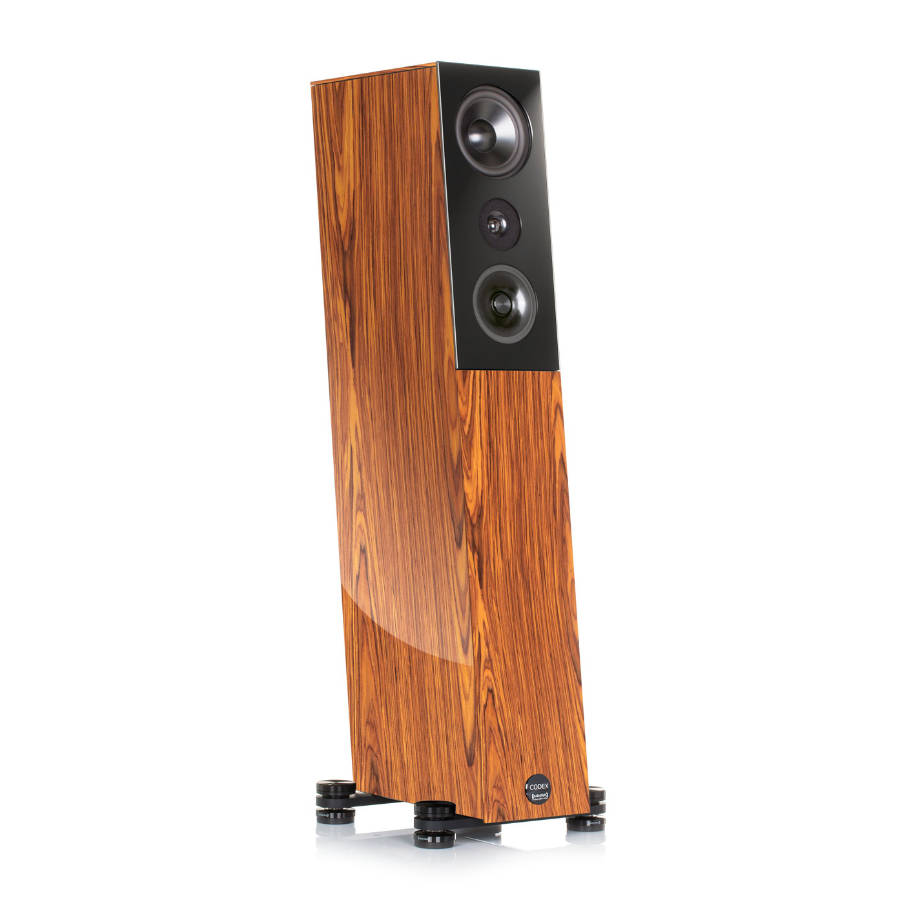

A special Glass Rosewood version is also listed by Audio Physic in selected markets on a price-on-request basis. Unlike previous Codex generations, this is a glass finish rather than conventional real-wood veneer.

Audio Physic Codex RQ combines deep, authoritative bass, advanced RECOTec driver technology and Q-SET room adaptation in an elegant 4-way Reference Line loudspeaker designed for both uncompromising sound quality and real-world placement flexibility.

Hi-Fi Market is an Audio Physic dealer in Estonia. Contact us or visit our showroom in Tabasalu near Tallinn for personal consultation, system matching and a listening appointment.

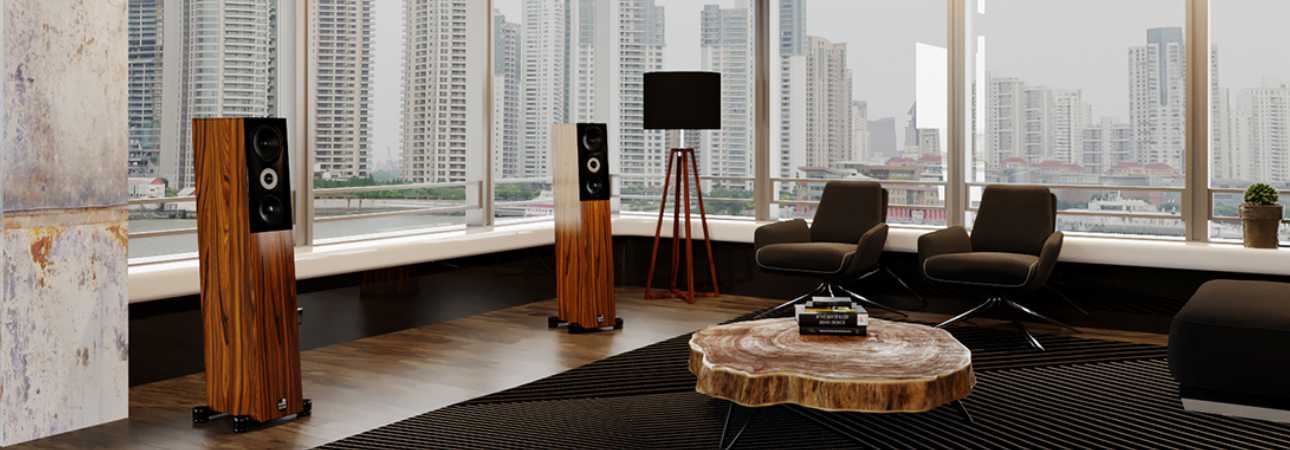

Audio Physic Codex RQ напольные колонки Reference Line в High-End Hi-Fi системе

ТЕХНИЧЕСКИЕ ХАРАКТЕРИСТИКИ

Specifications

Product Type 4-way floorstanding loudspeaker
Series Audio Physic Reference Line
Tweeter HHCT V, 39 mm / 1.5-inch RECOTec cone tweeter
Midrange HHCM V SL, 150 mm / 5.9-inch RECOTec spiderless midrange driver
Midwoofer 180 mm / 7-inch RECOTec driver with Double Surround and Q-SET
Internal Woofer 280 mm / 11-inch aluminium-cone woofer with Q-SET
Bass Adjustment 3-stage Q-SET adjustment for midwoofer and internal woofer
Frequency Range 28 Hz–40 kHz
Sensitivity 89 dB
Nominal Impedance 4 ohms
Recommended Amplifier Power 40–250 W
Connection Terminal Vibration Control Terminal with WBT nextgen® binding posts
Wiring Single-wiring standard; bi-wiring / bi-amping available on request
Cabinet Construction Sandwich construction with Ceramic Foam bracing and Honeycomb Sandwich Board
Height 1195 mm
Width 202 mm
Depth 370 mm
Required Space (W × D) 360 × 500 mm
Weight Approx. 44 kg per speaker in glass finish
Included Accessories Black glass grille and spike set
Standard Finishes Glass Black, Glass White, Glass Anthracite
Special Finish Glass Rosewood – availability and price on request
